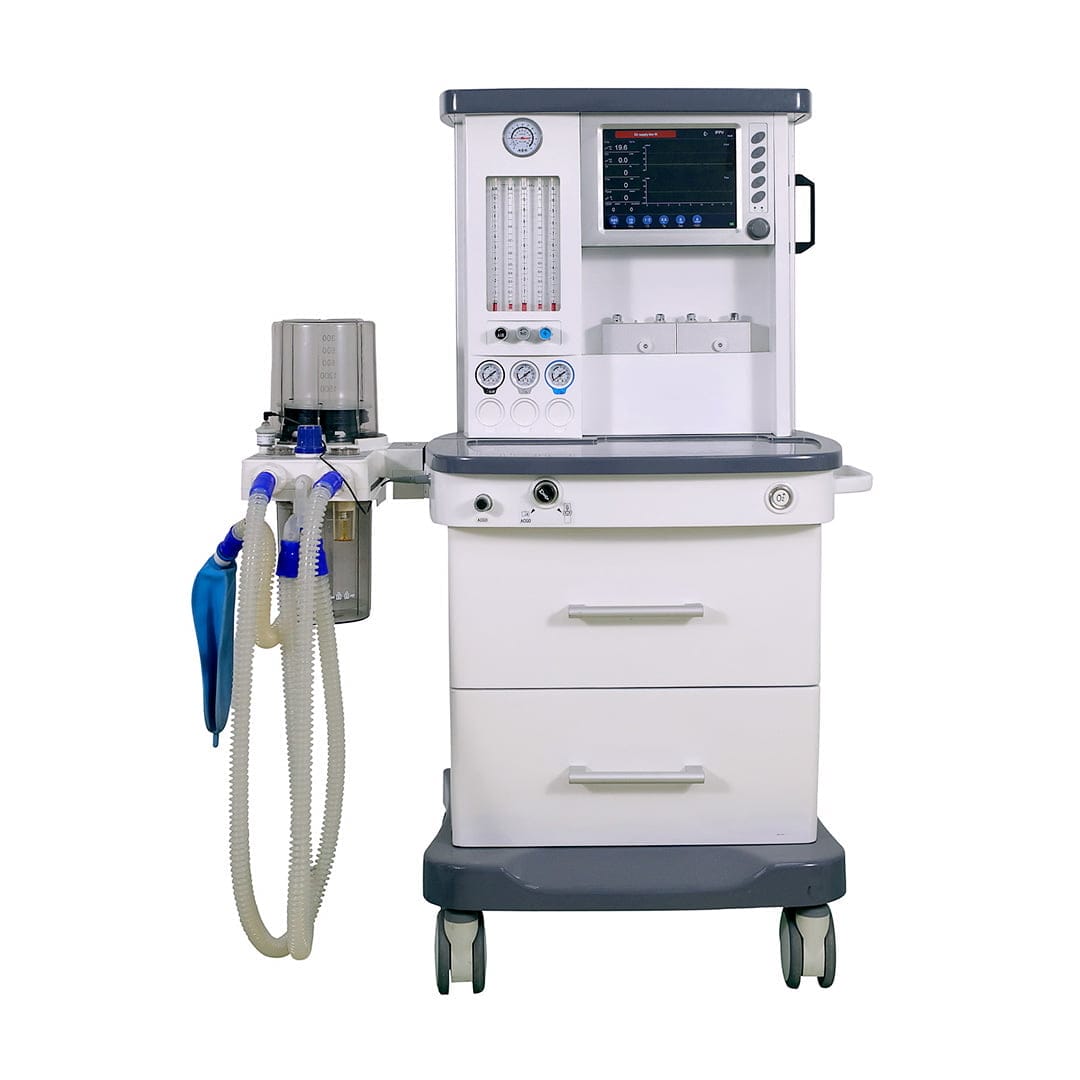

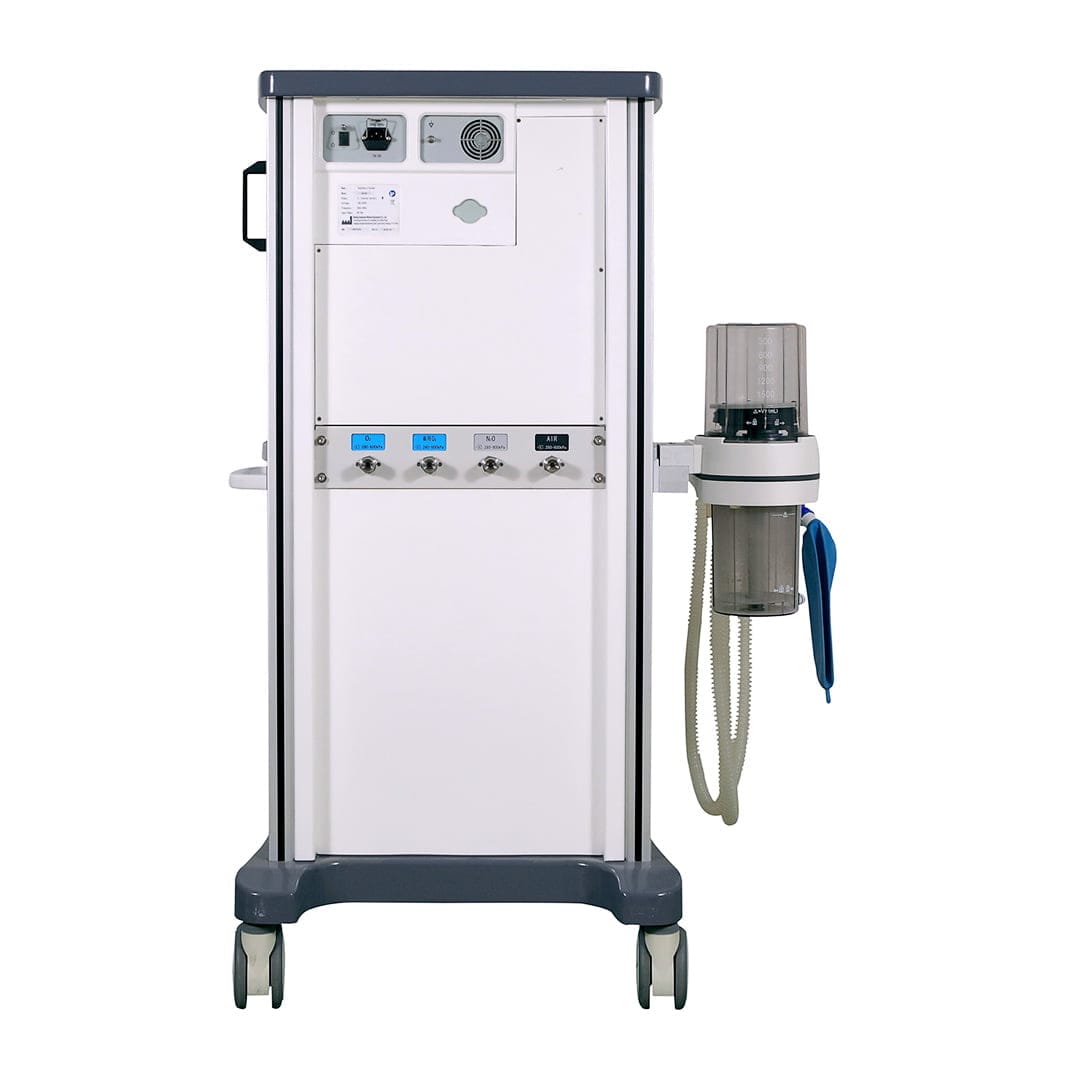

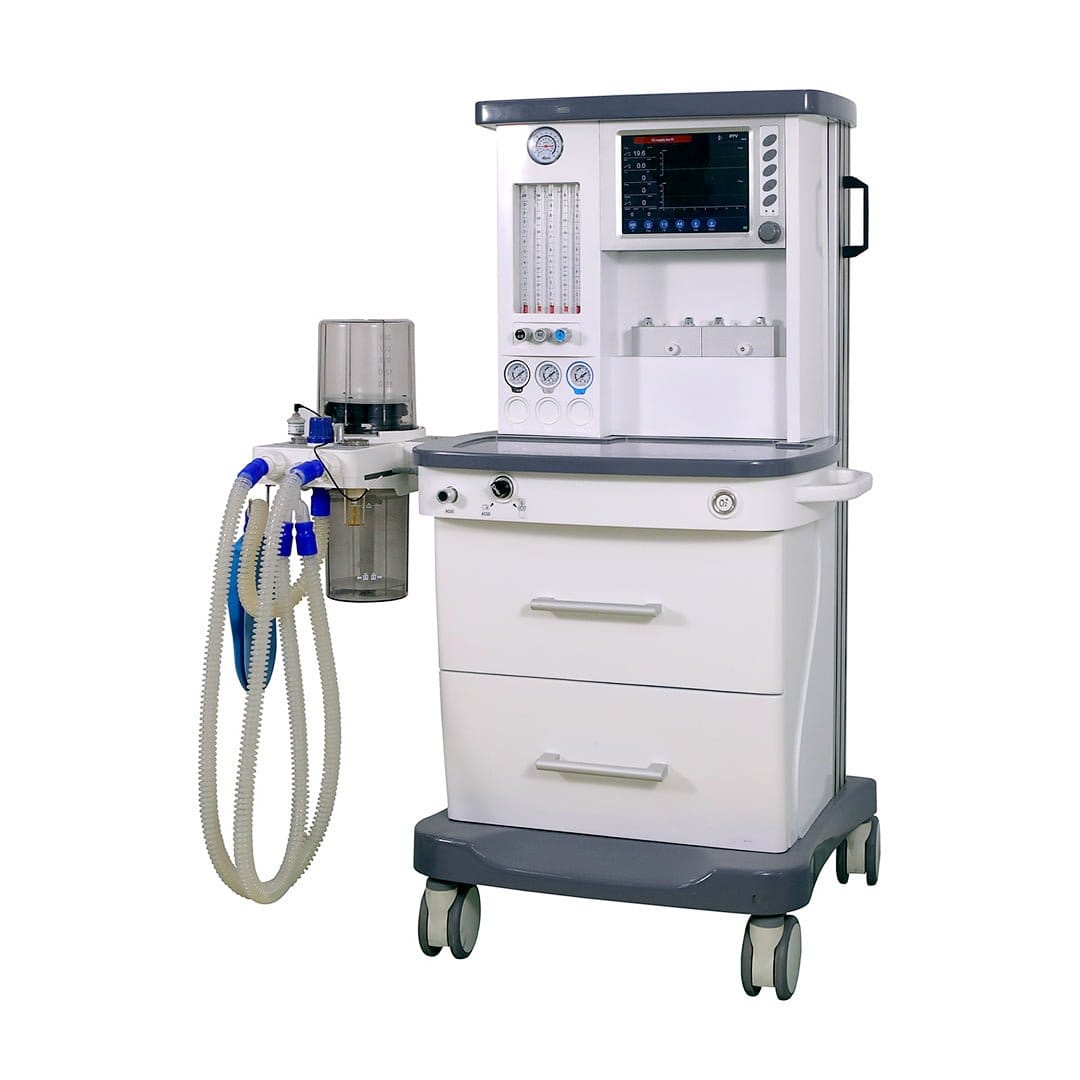

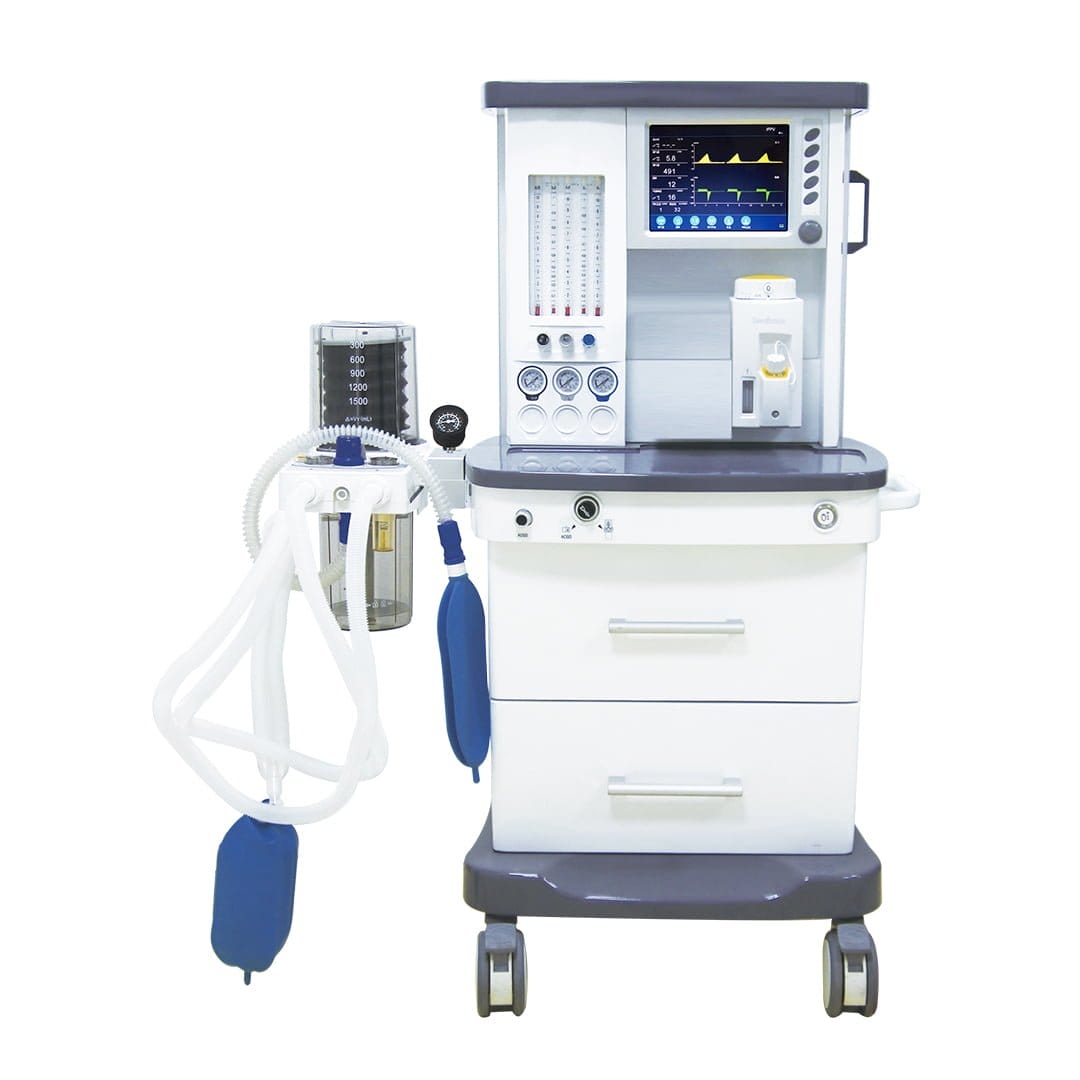

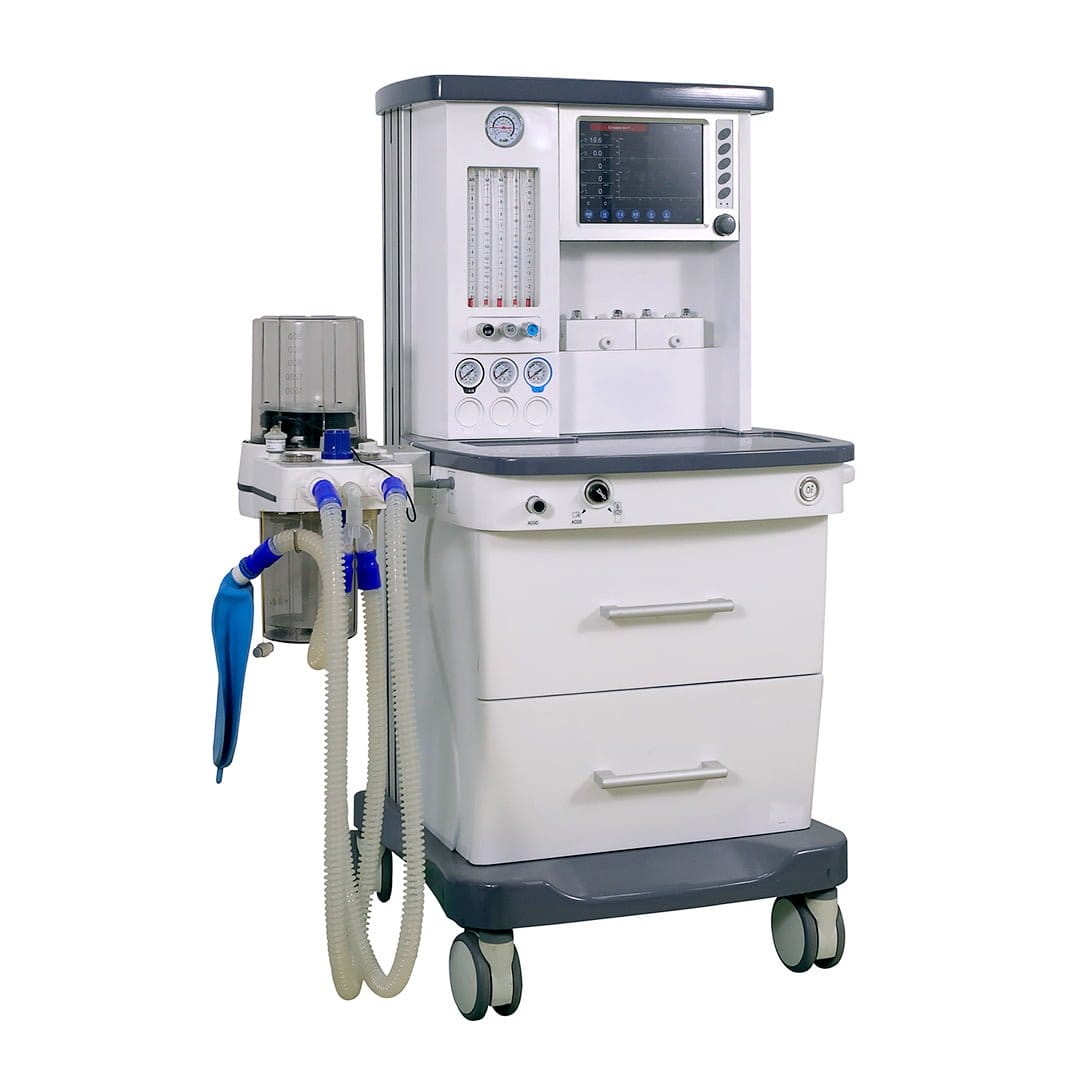

DM6100 Veterinary Anesthesia System
Superstar Anesthesia machine is a device that delivers anesthesia to the animals during surgery. It provides a high-quality, steady, and continuous supply of gases (O2 & CO2) to the animals.
Application
Veterinary Anesthesia System is widely applied to veterinary clinics, hospitals and laboratories, as always
received good reputation from clients around the world.
DM6100 model designed for safe, simple and controllable inhalation anesthesia for animals.
The Veterinary Anesthesia System provides rapid control of anesthetic depth with little resistance to respiration from high to low acuity, simple to complex cases, small to big animals, like Dogs, Cats, Rabbits, Mice, Birds, etc.
Trustpoint
- Simplicity: 4 static casters with self-locking function.
- Precision in an anesthesia ventilator with multiple ventilation modes: IPPV,
V-A/C, P-A/C, V-SIMV, P-SIMV, PCV-PC, PCV-VG, PSV, SIGH, MANUAL. - Flexible configurations able to customize your requirements.
- International standard and advanced technology suitable for wide range use.
- Compact interface and big screen give you better operating experience.
- Over 5,000 units are installed in more than 200 countries.
- Designed and manufactured by Superstar Medical with over 25 years of experience in Animal treatment.
Feature
- 10.4” TFT LCD screen displays the Ventilation parameters, Alarm information and Oscillogram.
- High precision flowmeter, instantly know the fresh gas flow to your patient.
- Integrated breathing circuit design, ensure easy operating and keep tidy.
- Multiple working modes such as volume control and pressure limit, adapt to wide range patient.
- Vaporizer with temperature, pressure, flow compensation and self-lock function, keep safety anytime.
- Multiple parameters monitoring interface, make every parameter clear, let users know the patient conditions in all aspects.
- Pressure-time, low-time loop oscillogram and high precision ETCO2, O2 concentration show in real time.
- Vital sign monitor and anesthetic gas monitor are optional.
- ETCO2 module and Anesthesia Gas Scavenging System (AGSS) are optional.
Safety
- 3 level alarm system, visual and sound alarm information.
- With multiple type of alarm, reminder and protection functions.
- Advanced power management control technology.
- Built-in backup battery provide the emergency power supply to the unit.
- Low O2 pressure alarm and N2O cut-off protection
| TECHNICAL SPECIFICATION | Value | TECHNICAL SPECIFICATION | Value | |
|---|---|---|---|---|
| Ventilation mode | Alarm and protection | |||
| IPPV, A/C, PCV, SIMV, SIGH, MANUAL | The AC power failure alarm | Power failure or no connection | ||
| Low voltage alarm for back up battery | ＜11.3±0.3V | |||
| Ventilator parameter range | No tidal volume | ≤5mL within 6s | ||
| Flowmeter | O2(0.1～10 L/min) | High oxygen concentration alarm | 19%～100% | |
| N2O (0.1～10 L/min) | Low oxygen concentration alarm | 18%～99% | ||
| AIR (0.1～10 L/min) | High airway pressure alarm | 20 cmH2O～100 cmH2O | ||
| Rapid oxygen supply | 25 L/min～75 L/min | Low airway pressure alarm | 0 cmH2O～20 cmH2O | |
| Tidal volume(Vt) | 0, 20 mL～1500 mL | High minute volume alarm | VtH (5 L/min～20 L/min) | |
| Frequence | 1 /min～100 /min | VtL (1 L/min～15 L/min) | ||
| I:E | 4:1～1:8 | Low minute volume alarm | 0～10 L/min | |
| PEEP | 0 cmH2O～30 cmH2O | Continuous pressure alarm | (PEEP+1.5 kPa) over 16s | |
| Pressure triggering sensitivity(Ptr） | -20 cmH2O～0 cmH2O(Based on PEEP) | Suffocation warning | 5s～60s no spontaneous ventilation | |
| Flow trigger sensitivity（Ftr） | 0.5 L/min～30 L/min | The maximum limited pressure | ＜12.5 kPa | |
| Pressure control (PC) | 5 cmH2O～60 cmH2O | Fan error | Show on screen | |
| SIGH | 0 (off) 1/100～5/100 | Oxygen deficit | Show on screen | |
| Apnea ventilation | OFF，5s～60s | |||
| Pressure limit | 20 cmH2O～100 cmH2O | Working condition | ||
| Gas source | O2, N2O, AIR | |||
| Monitoring parameter | Pressure | 280 kPa～600 kPa | ||
| Frequence（Freq） | 0 /min～100 /min | Voltage | 100～240V | |
| Tidal volume(Vt) | 0 mL～2000 mL | Power frequency | 50/60 Hz | |
| MV | 0 L/min～100 L/min | |||
| Oxygen concentration | 15 %～100 % | |||
| Packing size | ||||
| Oscillogram | Wooden case packing size | L 920* W 970* H 1380mm | ||
| P-T (pressure – time) | G.W. | 156KG | ||
| F-T (flow – time) | N.W. | 102KG | ||
| P-V loop (pressure – volume loop) | CBM | 1.23m³ |
