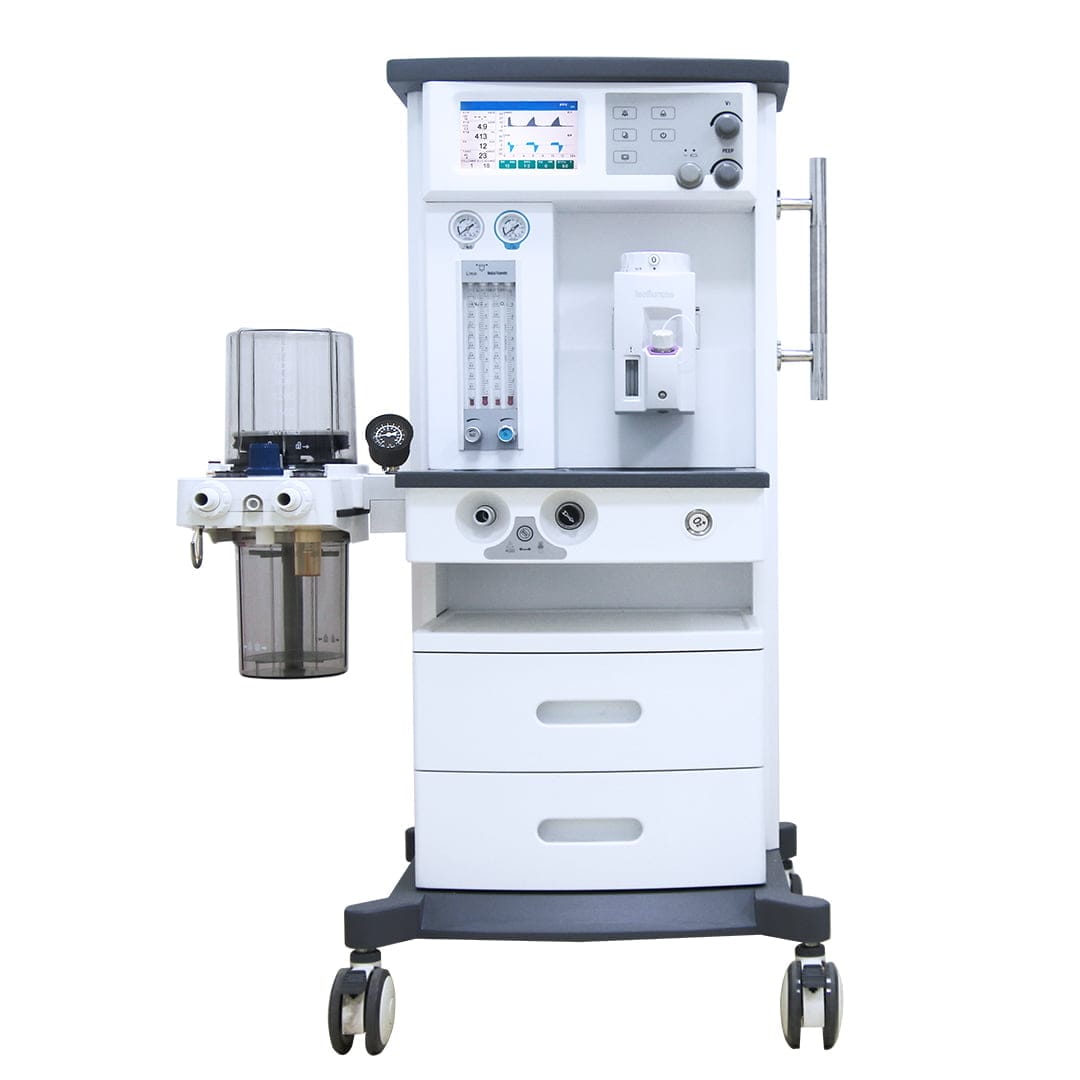

DM6100A（Basic) Veterinary Anesthesia System
Superstar Anesthesia machine is a device that delivers anesthesia to the animals during surgery. It provides a high-quality, steady, and continuous supply of gases (O2 & NO2 or Air ) to the animals.
Application
Veterinary Anesthesia System is widely applied to veterinary clinics, hospitals and laboratories, as always
received good reputation from clients around the world.
DM6100A (Basic) model designed for safe, simple and controllable inhalation anesthesia for animals.
The Veterinary Anesthesia System provides rapid control of anesthetic depth with little resistance to respiration from high to low acuity, simple to complex cases, small to big animals, like Dogs, Cats, Rabbits, Mice, Birds, etc.
Trust point
- Providing customers with high quality and cost-effective anesthesia machine.
- The Superstar Medical team is a group of experienced and dedicated professionals with a passion for more than 20 years.
- We listen to our customers and integrate their insights in our machine development. Flexible configurations to suit customers’needs.
- Countless feedback from customers give good reviews.Real time pressure-time, flow-time loop Oscillogram and high precision O2 concentration detection function included.
Feature
- 7 inch TFT LCD screen displays the Ventilation parameters, Alarm information and Oscillogram.
- High precision flowmeter, instantly know the fresh gas flow to your patient.
- Integrated breathing circuit design, ensure easy operating and keep tidy.
- Multiple working modes such as volume control and pressure limit, adapt to wide range patient.
- Vaporizer with temperature, pressure, flow compensation and self-lock function, keep safety anytime.
- Multiple parameters monitoring interface, make every parameter clear, let users know the patient conditions in all aspects.
- Pressure-time, flow-time oscillogram show in real time.
- Vital sign monitor and Anesthetic gas monitor are optional.
- ACGO and fast oxygen supply – Emergency use and revival after opertation.
Safety
- Three level alarm system, visual and sound alarm information.
- With multiple type of alarm, reminder and protection functions.
- Advanced power management control technology.
- Low O2 pressure alarm and N2O cut-off protection.
| TECHNICAL SPECIFICATION | Value | TECHNICAL SPECIFICATION | Value |
|---|---|---|---|
| Ventilation mode | Alarm and protection | ||
| IPPV, A/C, SIMV, SIGH, MANUAL | The AC power failure alarm | Power failure or no connection | |
| Low voltage alarm for back up battery | ＜11.3±0.3V | ||
| Ventilator parameter range | No tidal volume | ≤5mLwithin 6s | |
| Flowmeter | O2(0.1～10 L/min) | High oxygen concentration alarm | 19%～100% |
| N2O (0.1～10 L/min) | Low oxygen concentration alarm | 18%～99% | |
| Rapid oxygen supply | 25 L/min～75 L/min | High airway pressure alarm | 20 cmH2O～100 cmH2O |
| Tidal volume (Vt) | 0, 20 mL～1500 mL | Low airway pressure alarm | 0 cmH2O～20 cmH2O |
| Frequence | 1 /min～100 /min | High minute volume alarm | VtH (5 L/min～20 L/min) |
| I:E | 2:1～1:6 | VtL (1 L/min～15 L/min) | |
| PEEP | 0 cmH2O～30 cmH2O | Low minute volume alarm | 0～10 L/min |
| Pressure triggering sensitivity(Ptr） | -20 cmH2O～0 cmH2O(Based on PEEP) | Continuous pressure alarm | (PEEP+1.5 kPa) over 16s |
| Flow trigger sensitivity（Ftr） | 0.5 L/min～30 L/min | Suffocation warning | 5s～60s no spontaneous ventilation |
| SIGH | 0 (off) 1/100～5/100 | The maximum limited pressure | ＜12.5 kPa |
| Apnea ventilation | OFF，5s～60s | Fan error | Show on screen |
| Pressure limit | 20 cmH2O～100 cmH2O | Oxygen deficit | Show on screen |
| Monitoring parameter | Working condition | ||
| Frequence | 0 /min～100 /min | Gas source | O2, N2O |
| Tidal volume (Vt) | 0 mL～2000 mL | Pressure | 280 kPa～600 kPa |
| MV | 0 L/min～100 L/min | Voltage | 100～240V |
| Oxygen concentration | 15 %～100 % | Power frequency | 50/60 Hz |
| Packing size | Oscillogram | ||
| Wooden case packing size | L 740* W 800* H 1460mm | P-T (pressure – time) | |
| G.W. | 98KG | F-T (flow – time) | |
| N.W. | 66KG |
To better ensure the safety of goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Wooden case packing size:
Main components: L 560 * W 560 * H 605 mm
G.W. : 40 KG, N.W. : 20 KG
Air compressor: L 670* W 700 * H 1160 mm
G.W. : 100 KG, N.W. : 64 KG
