DM6D

Veterinary Anesthesia System is widely applied to veterinary clinics, hospitals and laboratories, as always received good reputation from clients around the world.

Application

Veterinary Anesthesia System is widely applied to veterinary clinics, hospitals and laboratories, as always received good reputation from clients around the world.

DM6C model designed for safe, simple and controllable inhalation anesthesia for animals.

The Veterinary Anesthesia System provides rapid control of anesthetic depth with little resistance to respiration from high to low acuity, simple to complex cases, small to big animals, like Dogs, Cats, Rabbits, Mice, Birds, etc.

Trust point

  • 4 casters with 2 individual brakes.
  • Wide range application for animals within 200KG.
  • International standard and advanced technology suitable for wide range use.

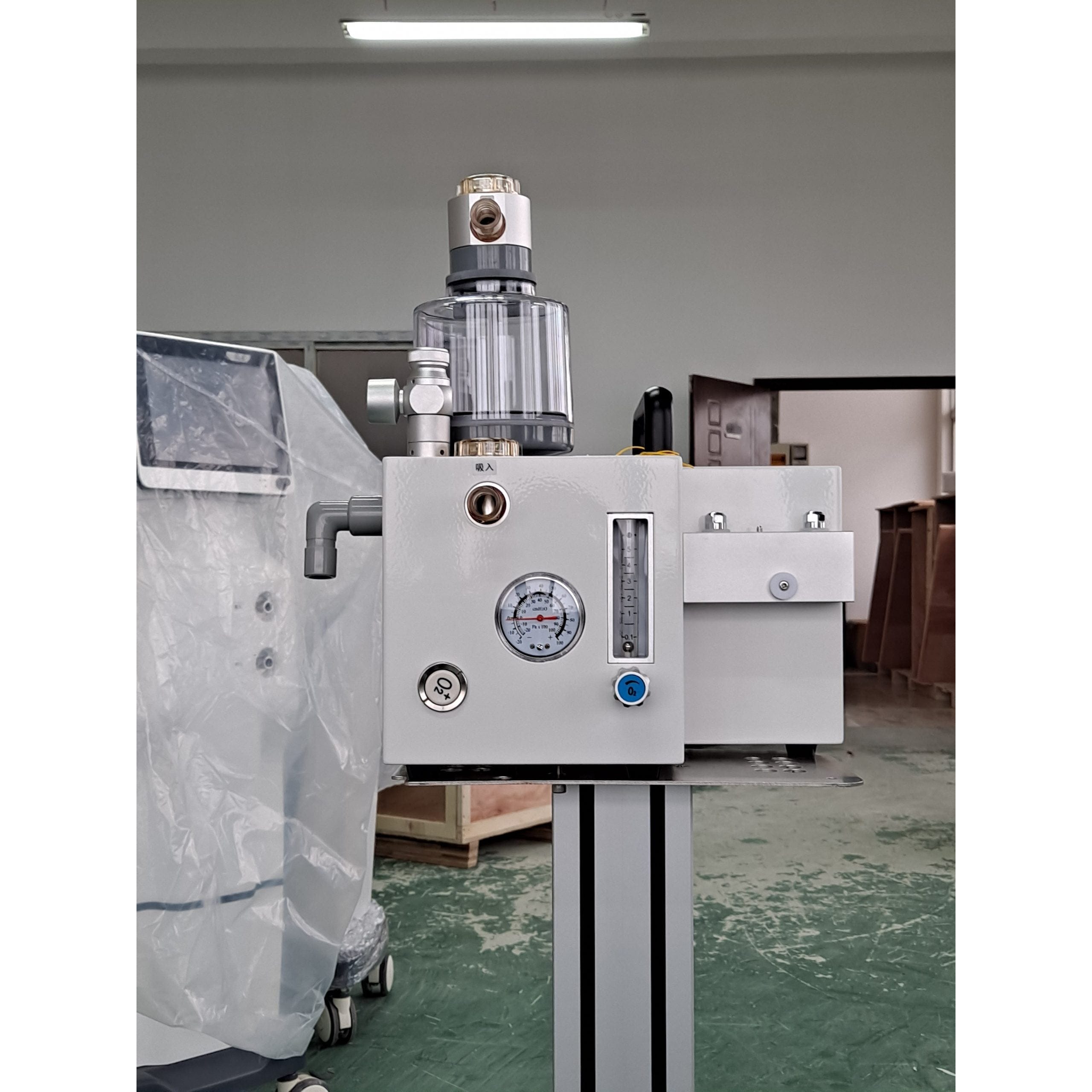

  • Pressure gauge and flowmeter ensure accurate adjustment of parameters.
  • Over 2,000 units are installed in more than 200 countries.
  • Designed and manufactured by Superstar Medical with over 25 years of experience in veterinary field.

Feature

  • High precision flowmeter, instantly know the fresh gas flow to the animals.
  • Integrated breathing circuit design, ensure easy operation and keep tidy.
  • Vaporizer with temperature, pressure, flow compensation and self-lock function, keep safety anytime.
TECHNICAL SPECIFICATIONValueTECHNICAL SPECIFICATIONValue
FlowmeterO2 (0~5L/min)Main component wooden case packing sizeL 610*W810*H 630mm
Rapid oxygen supply25L/min~75L/minG.W.55KG
Monitoring parameterN.W.26KG
Airway pressure0 cmH2O~100cmH2OAccessory wooden case packing sizeL 650*W 690*H 520mm
Working conditionG.W.31KG
Gas sourceO2N.W.11KG
Pressure280kPa~600kPaTotal CBM0.543m³

Reviews

There are no reviews yet.

Be the first to review “DM6D”

Your email address will not be published.



To better ensure the safety of goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Wooden case packing size:
Main components: L 560 * W 560 * H 605 mm
G.W. : 40 KG, N.W. : 20 KG
Air compressor: L 670* W 700 * H 1160 mm
G.W. : 100 KG, N.W. : 64 KG
