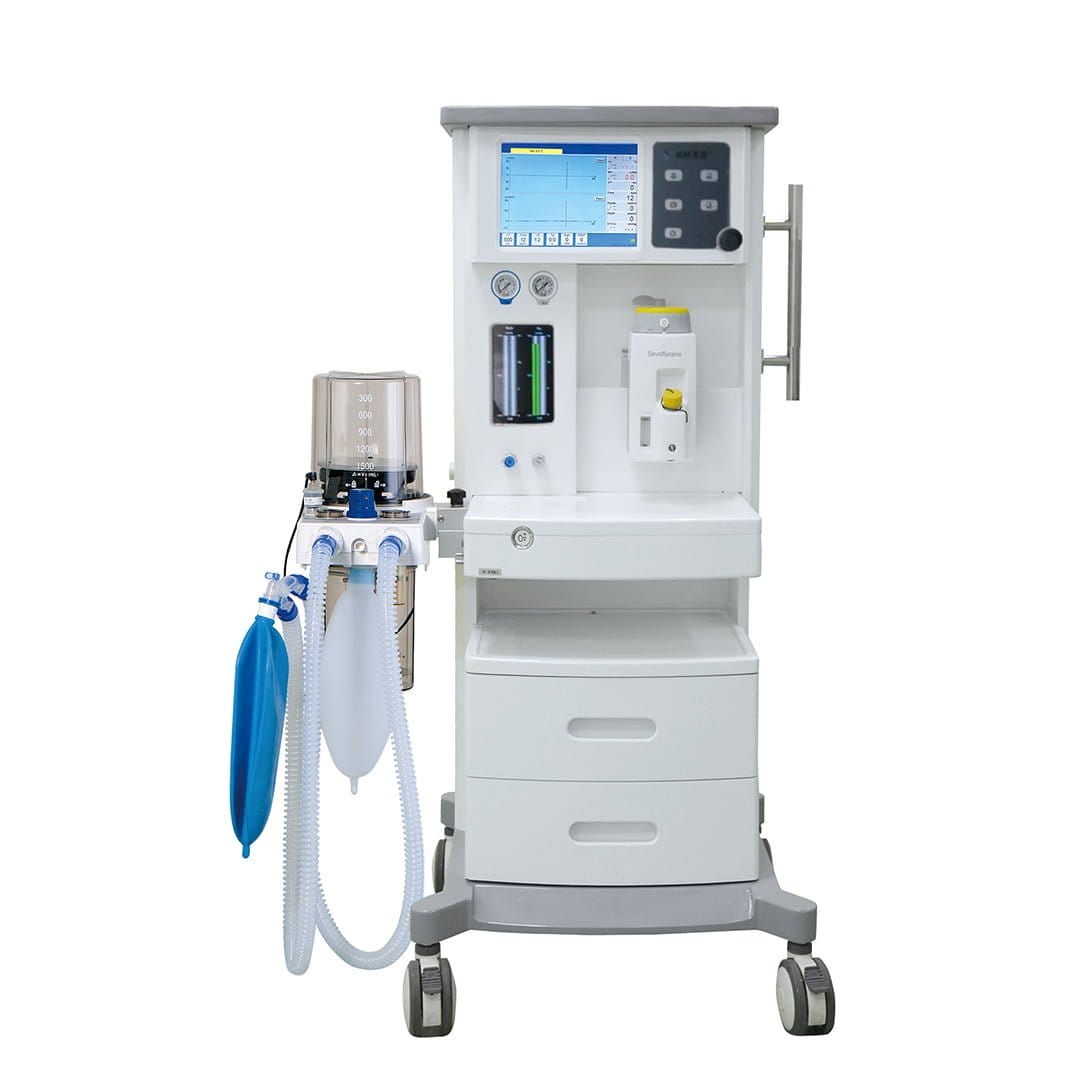

DM6A
Veterinary Anesthesia System is widely applied to veterinary clinics, hospitals and laboratories, as always received good reputation from clients around the world.
Application
Veterinary Anesthesia System is widely applied to veterinary clinics, hospitals and laboratories, as always received good reputation from clients around the world.
DM6A model designed for safe, simple and controllable inhalation anesthesia for animals.
The Veterinary Anesthesia System provides rapid control of anesthetic depth with little resistance to respiration from high to low acuity, simple to complex cases, small to big animals, like Dogs, Cats, Rabbits, Mice, Birds, etc.
Trust point
- 4 casters with 2 individual brakes.
- Precision in an anesthesia ventilator with multiple ventilation modes: IPPV, A/C, PCV, SIMV, SIGH and MANUAL.
- Compact interface and 10.4″ TFT LCD touch screen give you better operating experience.
- Flexible configurations able to customize your requirements.
- International standard and advanced technology suitable for wide range use.
- Over 5,000 units are installed in more than 200 countries.
- Designed and manufactured by Superstar Medical with over 25 years of experience in veterinary field.
Safety
- Three level alarm system, visual and sound alarm information.
- Intelligent dual system controls ensure safe use in clinics.
- With lots of alarm, reminder and protection functions.
- Advanced power management control technology.
- Built-in backup battery provide the emergency power supply up to 2-3 hours for the unit.
Advantage
- 10.4″ touch screen displays information area, alarm area, monitoring area, and setting area.
- Electronic flowmeter, instantly know the fresh gas flow to animals.
- Vaporizer with temperature, pressure, flow compensation and self-lock function, keep safety anytime.
- Real time pressure-time, flow-time loop oscillogram and high precision ETCO2, O2 concentration detection function included.
- Electronic PEEP makes parameter adjustment more precise.
- Screen displays manual or mechanical ventilation, keeps safety.
- Built-in sensor design with longer use life.
- Wide use range for animals within 200KG.
- ETCO2 module and Anesthesia Gas Scavenging System (AGSS) are optional.
| TECHNICAL SPECIFICATION | Value | TECHNICAL SPECIFICATION | Value |
|---|---|---|---|
| Ventilation mode | Alarm and protection | ||
| IPPV,A/C,PCV,SIMV,SIGH,MANUAL | The AC power failure alarm | Power failure or no connection | |
| Low voltage alarm for back up battery | ＜11.3±0.3V | ||
| Ventilator parameter range | No tidal volume | ≤5mL within 6s | |
| Flowmeter | O2 (0.1～10L/min) | High oxygen concentration alarm | 19%-100% |
| N2O (0.1～10L/min) | Low oxygen concentration alarm | 18%-99% | |
| Rapid oxygen supply | 25L/min～75L/min | High airway pressure alarm | 20cmH2O-100cmH2O |
| Tidal volume (Vt) | 0, 20 mL～ 1500 mL | Low airway pressure alarm | 0cmH2O-20cmH2O |
| Frequence（Freq） | 1/min～100/min | High minute volume alarm | Adult (5L/min-20L/min) |
| I:E | 4:1～1:8 | Low minute volume alarm | Paediatric (1L/min-15L/min) |
| PEEP | 0cmH2O~20cmH2O | (0-10L/min) | |
| Pressure triggering sensitivity(Ptr) | -20 cmH2O～20 cmH2O(Based on PEEP） | Continuous pressure alarm | (PEEP+1.5kPa) over 16s |
| Flow trigger sensitivity (Ftr) | 0.5 L/min ～ 30 L/min | Suffocation warning | 5s-60s no spontaneous ventilation |
| Pressure control (PC) | 5 cmH2O ～ 60 cmH2O | The maximum limited pressure | ＜12.5 kPa |
| SIGH | 0(off) 1/100 ～ 5/100 | Fan error | Show on screen |
| Apnea ventilation | OFF，5 s ～ 60 s | Oxygen deficit | Show on screen |
| Pressure limit | 20 cmH2O ～ 100 cmH2O | ||
| Working condition | |||
| Monitoring parameter | Gas source | O2, N2O | |
| Frequence（Freq） | 0/min～100/min | Pressure | 280kPa-600kPa |
| Tidal volume (Vt) | 0 mL～ 2000 mL | Voltage | 100-240V |
| MV | 0 L/min ～ 100 L/min | Power frequency | 50/60Hz |
| Oxygen concentration | 15 % ～ 100 % | ||
| Oscillogram | Size | ||
| P-T (pressure – time) | Wooden case packing size | L 740*W 795*H 1540mm | |
| F-T (flow – time) | G.W. | 98KG | |
| P-V loop (pressure – volume loop) | N.W. | 66KG | |
| V-T (volume – time ) | CBM | 0.99m³ | |
| ETCO2-T (ETCO2 – time) | |||
| Size |
To better ensure the safety of goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Wooden case packing size:
Main components: L 560 * W 560 * H 605 mm
G.W. : 40 KG, N.W. : 20 KG
Air compressor: L 670* W 700 * H 1160 mm
G.W. : 100 KG, N.W. : 64 KG
