NLF-200D

Continuous Positive Airway Pressure (CPAP) nurtures and supports infant breathing by providing respiratory support throughout the respiratory cycle.

Contact Form Demo (#3)

Category:

Application

Continuous Positive Airway Pressure (CPAP) nurtures and supports infant breathing by providing respiratory support throughout the respiratory cycle.

CPAP System maintains the infant’s functional residual capacity by helping to prevent airway closure.

The NLF-200D CPAP System has the advantages of compact device, small footprint, saving energy and integrated high-performance in operation.

This makes it an ideal companion for your smallest patients in the Neonatal Intensive Care Units (NICU), emergency ward, delivery room and other departments.

Trust point

  • Mobility for intrahospital transport : easy to move with 5 wheels, easy to stop with three brakes in front casters.
  • Flexible configurations to suit your needs.
  • International standard and advanced technology suitable for all baby patient around the world.
  • Designed and manufactured by Superstar Medical with over 25 years experience in this area,Over 2,000 units installed in the world.

Feature

  • Integrated breathing circuit design, ensure easy operating and keep hygiene.
  • Built-in air and oxygen blender, ensure stable oxygen concentration.
  • Reliable CPAP control valve and pressure monitoring system improve CPAP adjustment precision.

Safety

  • Two casters with brake, ensure stable operating.

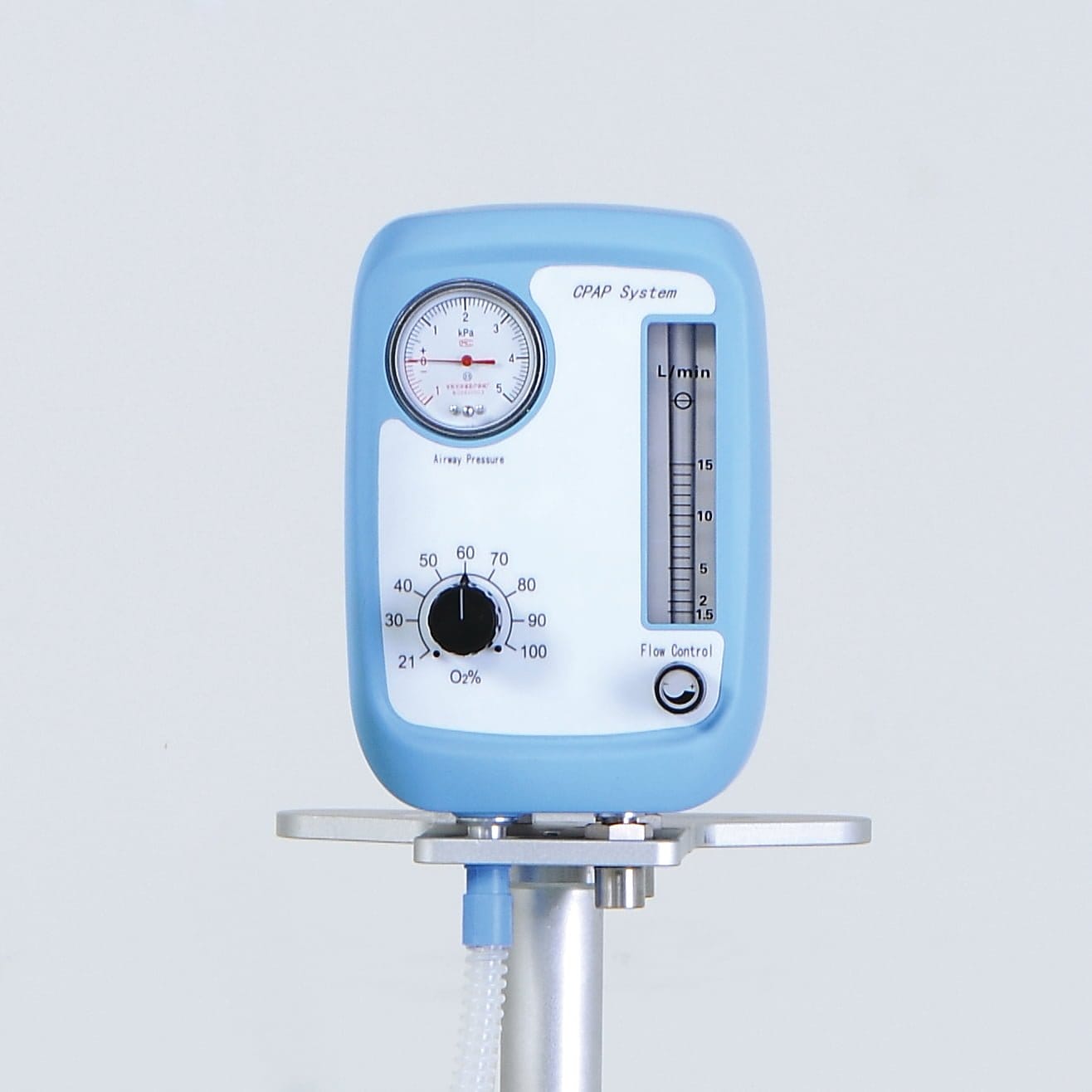

  • Pressure guage and flow meter ensure accurate adjusting of parameters.
TECHNICAL SPECIFICATIONValueTECHNICAL SPECIFICATIONValue
Oxygen concentrationAdjusting range: 21% - 100%Wooden case packing size (main component)L 700*W 710*H 380mm
CPAPAdjusting range: 0cmH2O - 10cmH2OG.W.35KG
Continuous flowAdjusting range: 0L/min - 15L/minN.W.17.7KG
Gas sourceO2, AirWooden case packing size (Trolley)L 160*W 195*H 1100mm
Pressure280kPa - 600kPaG.W.6.7KG
N.W.2KG
Total CBM0.7m³

Reviews

There are no reviews yet.

Be the first to review “NLF-200D”

Your email address will not be published. Required fields are marked *



To better ensure the safety of goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Wooden case packing size:
Main components: L 560 * W 560 * H 605 mm
G.W. : 40 KG, N.W. : 20 KG
Air compressor: L 670* W 700 * H 1160 mm
G.W. : 100 KG, N.W. : 64 KG
