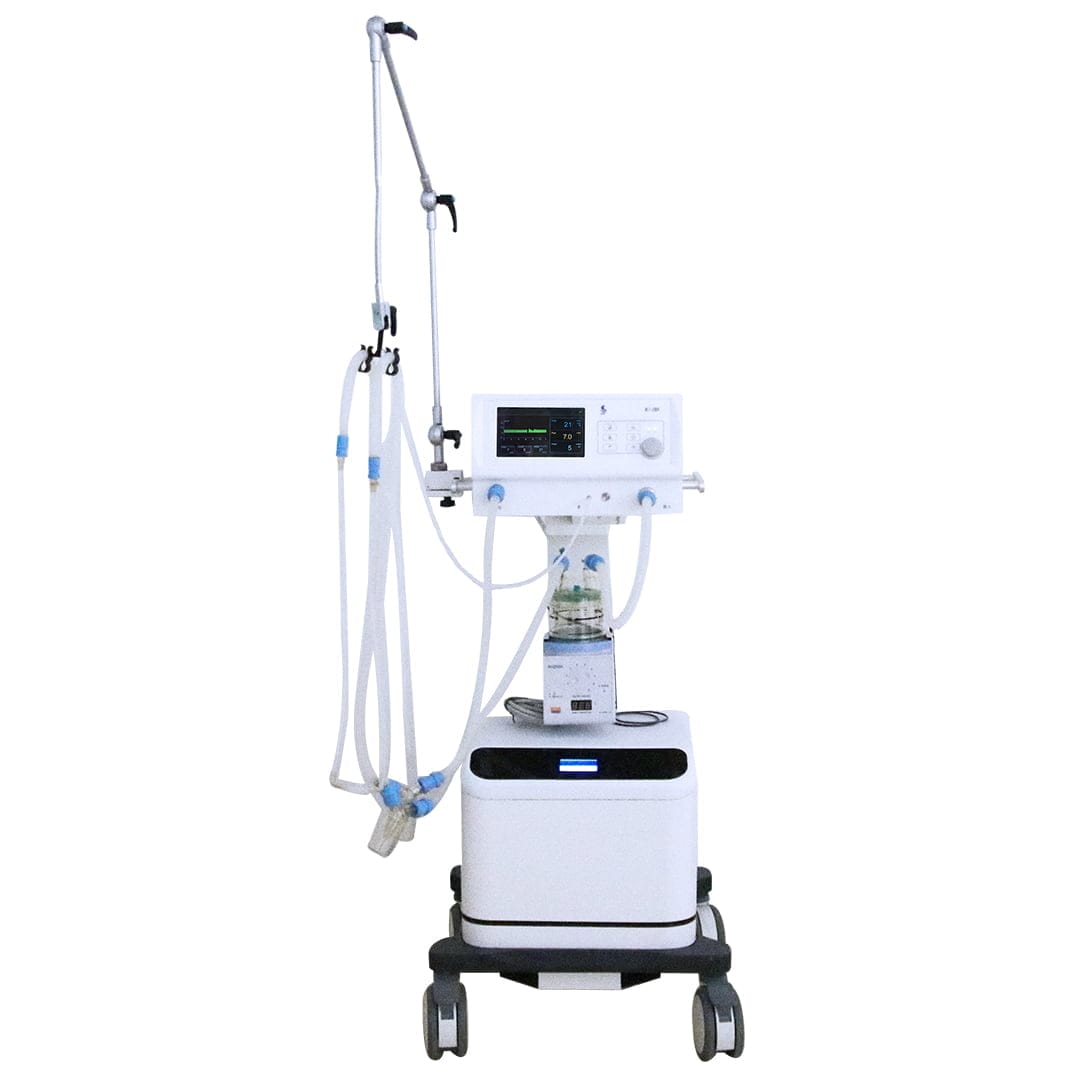

NLF-200A
Continuous Positive Airway Pressure (CPAP) nurtures and supports infant breathing by providing respiratory support throughout the respiratory cycle.
Application
Continuous Positive Airway Pressure (CPAP) nurtures and supports infant breathing by providing respiratory support throughout the respiratory cycle.
CPAP System maintains the infant’s functional residual capacity by helping to prevent airway closure.
The NLF-200A CPAP System has the advantages of compact device, small footprint, saving energy and integrated high-performance in operation.
This makes it an ideal companion for your smallest patients in the Neonatal Intensive Care Units (NICU), emergency ward, delivery room and other departments.
Trust point
- Easy-to-understand monitoring：The configurable screen displayIntuitionistic simplicity and specified approach diverse monitoring data.
- Mobility for intrahospital transport: Easy to move with 4 wheels, easy to stop with two brakes in front casters.
- Minimizes airway drying and inflammation with Intelligent humidification：Adjustable temperature and humidity settings, perfectly adapted the humidification settings to the special needs of small patients and environmental conditions.
- Minimize noise effects: Reducing noise to 50dB during using, to keep the ward quiet.
- Designed and manufactured by Superstar Medical with over 25 years experience in this area, Over 2,000 units installed in the world.
Feature

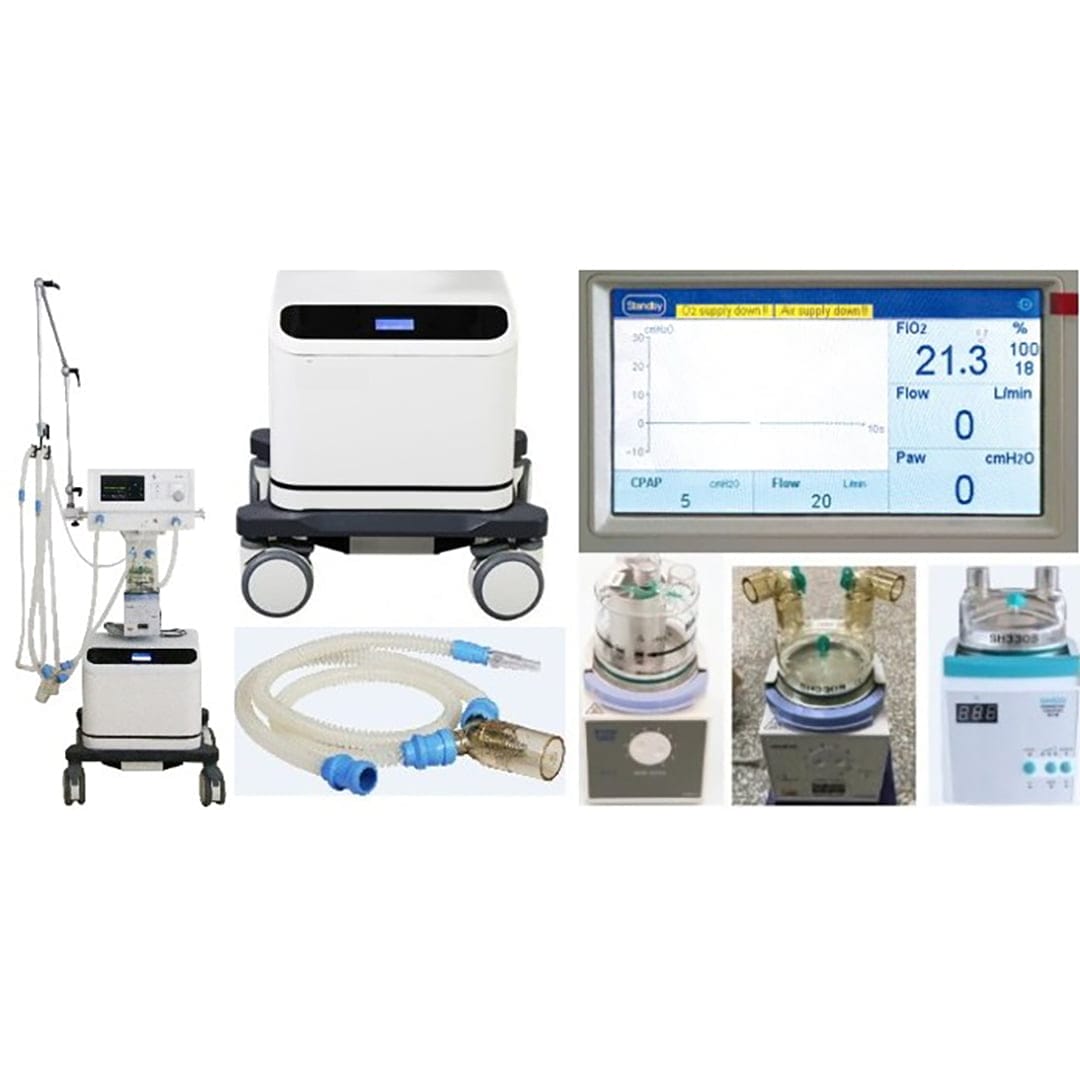

- 7” TFT LCD screen displays the ventilation parameters, alarm information and oscillograms.
- Intergrated breathing circuit design, ensure easy operating and keep hygiene.
- Multiple parameters monitoring interface ensures every parameter is clear, let operator know the patient conditions in all aspects.
- Real time pressure-time oscillogram and high precision oxygen concentration detection function included.
- Built-in air and oxygen blender, ensure stable oxygen concentration.
- Stable and low noise air compressor creates quiet work environment for doctors and patients, able to support 2-3 CPAP machines at the same time.
Safety
- Three levels alarm system, visual and audible alarm information.
- Different types of alarm, reminder and protection functions are available.
- Advanced power management control technology.
- Built-in backup battery provides the emergency power supply to the unit.
| TECHNICAL SPECIFICATION | Value | TECHNICAL SPECIFICATION | Value |
|---|---|---|---|
| Parameter | Alarm and protection | ||
| Oxygen concentration | Adjusting range: 21% - 100% | AC power failure alarm | Power failure or no connection |
| Monitoring range: 15% - 100% | Internal backup battery low voltage alarm | ＜ 11.3 ± 0.3V | |
| CPAP | Adjusting range: 0cmH2O - 15cmH2O | High oxygen concentration alarm | 16% - 100% |
| Monitoring range: 0cmH2O - 60cmH2O | Low oxygen concentration alarm | 15% - 99% | |
| Continuous flow | Adjusting range: 2L/min - 20L/min | High airway pressure alarm | 1.5kPa - 6kPa |
| Monitoring range: 2L/min - 20L/min | Low air input pressure alarm | ＜ 200kPa | |
| Manual ventilation | Output flow: 20L/min ± 5L/min | Low oxygen input pressure alarm | ＜ 200kPa |
| Air compressor | Continuous output flow: ≥ 25L/min | Air and oxygen blender alarm | When any gas source lack |
| Peak output flow: ≥ 120L/min | When differential pressure ＞ 0.1mPa | ||
| Oscillogram | P-T (pressure - time) | Compression pump alarm | Excess temperature |
| Working condition | Size | ||
| Gas source | O2, Air | Main engine | L 480*W 670*H 450mm |
| Pressure | 280kPa - 600kPa | G.W. | 35KG |
| Voltage | 100 - 240V | N.W. | 18KG |
| Power frequency | 50/60Hz | Air compressor | L 683*W 687*H 1140mm |
| G.W. | 100KG | ||
| N.W. | 65KG |
To better ensure the safety of goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Wooden case packing size:
Main components: L 560 * W 560 * H 605 mm
G.W. : 40 KG, N.W. : 20 KG
Air compressor: L 670* W 700 * H 1160 mm
G.W. : 100 KG, N.W. : 64 KG
