NLF-200C

Continuous Positive Airway Pressure (CPAP) nurtures and supports infant breathing by providing respiratory support throughout the respiratory cycle.

Category:

Application

Continuous Positive Airway Pressure (CPAP) nurtures and supports infant breathing by providing respiratory support throughout the respiratory cycle.

CPAP System maintains the infant’s functional residual capacity by helping to prevent airway closure.

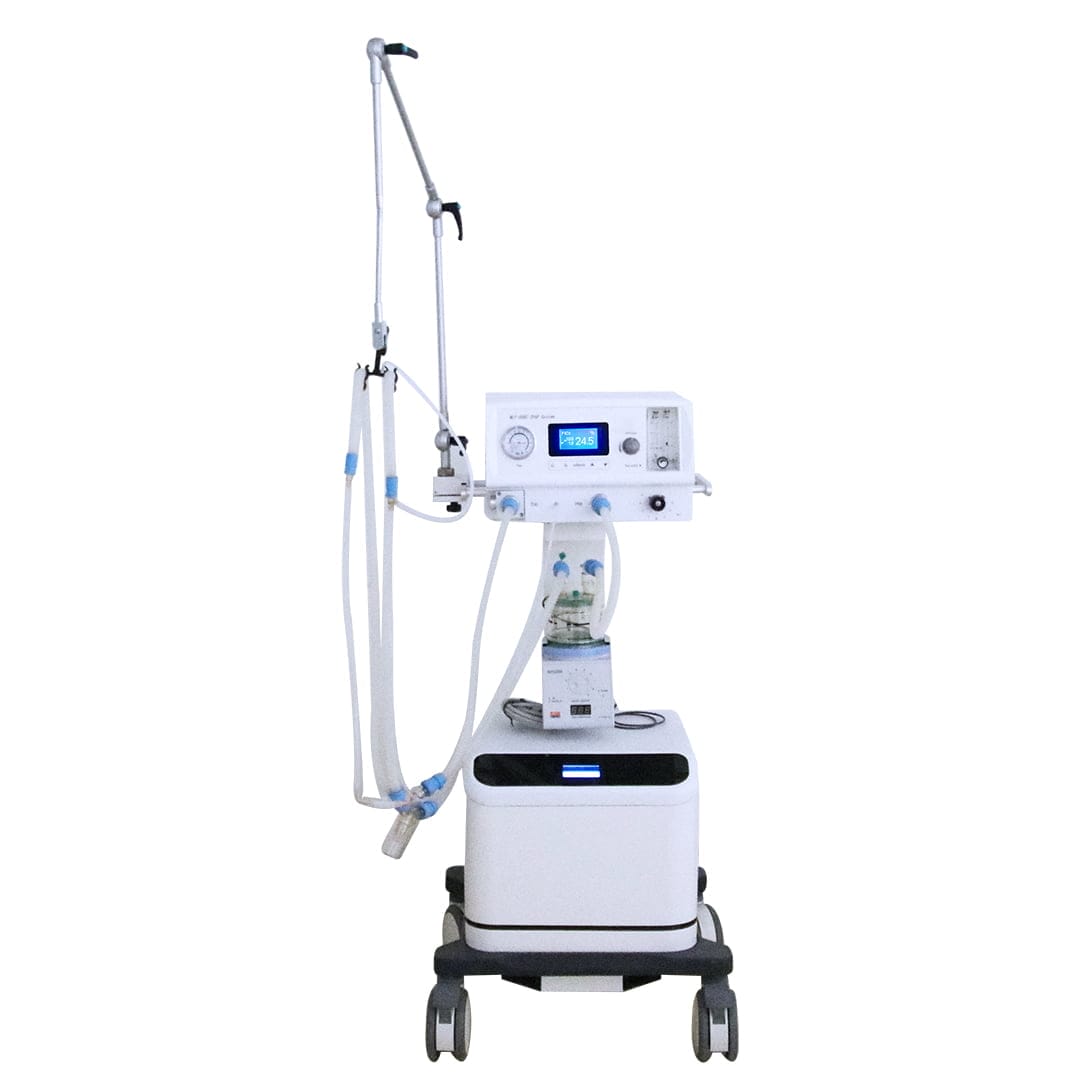

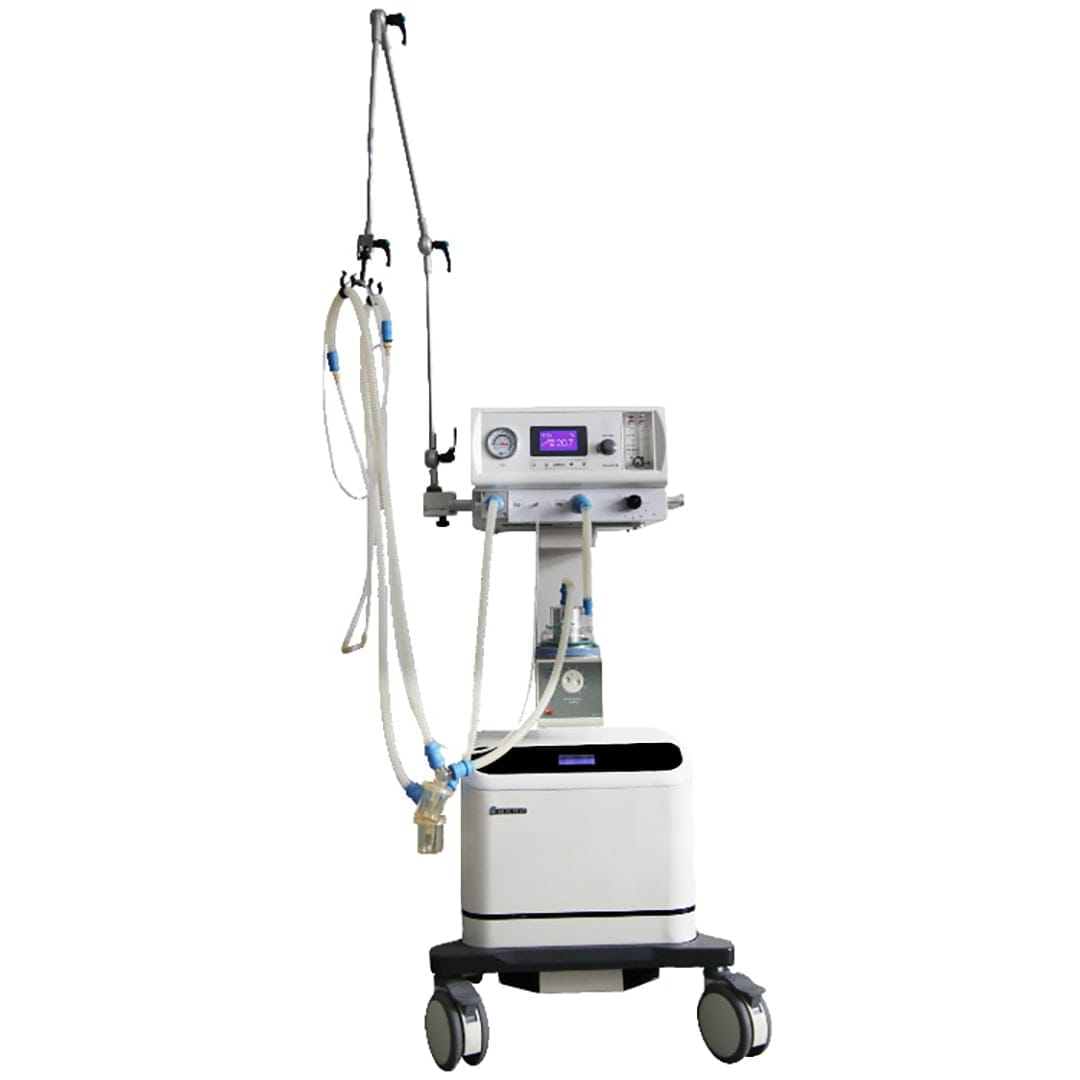

The NLF-200C CPAP System has the advantages of compact device, small footprint, saving energy and integrated high-performance in operation.

This makes it an ideal companion for your smallest patients in the Neonatal Intensive Care Units (NICU), emergency ward, delivery room and other departments.

Trust point

  • Easy-to-understand monitoring: The configurable screen display,Intuitionistic simplicity and specified approach diverse monitoring data.
  • Mobility for intrahospital transport: Easy to move with 4 wheels, easy to stop with two brakes in front casters.
  • Minimizes airway drying and inflammation with Intelligent humidification:Adjustable temperature and humidity settings, perfectly adapted the humidification settings to the special needs of small patients and environmental conditions.
  • Minimize noise effects: Reducing noise to 50dB during using, to keep the ward quiet.
  • Designed and manufactured by Superstar Medical with over 25 years experience in this area, Over 2,000 units installed in the world.

TECHNICAL SPECIFICATIONValueTECHNICAL SPECIFICATIONValue
Oxygen concentrationAdjusting range: 21% - 100%Voltage100 - 240V
Monitoring range: 15% - 100%Power frequency50/60Hz
CPAPAdjusting range: 0cmH2O - 15cmH2OMain engine.L 420* W 610* H 310mm,
Monitoring range: 0cmH2O - 60cmH2OG.W:23KG, N.W:12.5KG;0.544CBM
Continuous flowAdjusting range: 2L/min - 20L/minG.W.35KG
Monitoring range: 2L/min - 20L/minN.W.18KG
Gas sourceO2, Air
Pressure280kPa - 600kPaAir compressor.L 623* W 627* H 1000mm,
G.W:100 KG, N.W: 65 KG;0.15CBM
G.W.100KG
N.W.65KG

Reviews

There are no reviews yet.

Be the first to review “NLF-200C”

Your email address will not be published. Required fields are marked *



To better ensure the safety of goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Wooden case packing size:
Main components: L 560 * W 560 * H 605 mm
G.W. : 40 KG, N.W. : 20 KG
Air compressor: L 670* W 700 * H 1160 mm
G.W. : 100 KG, N.W. : 64 KG
