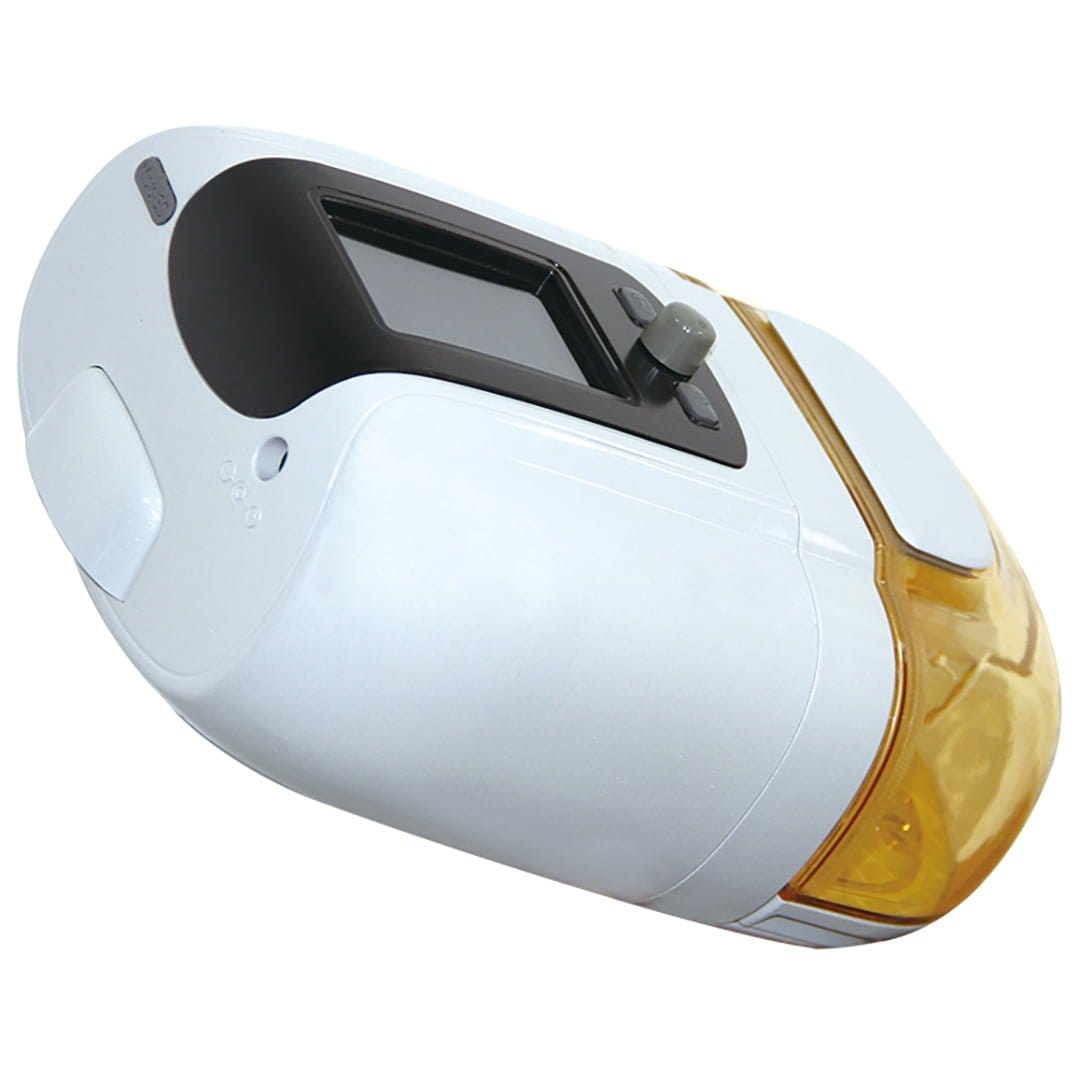

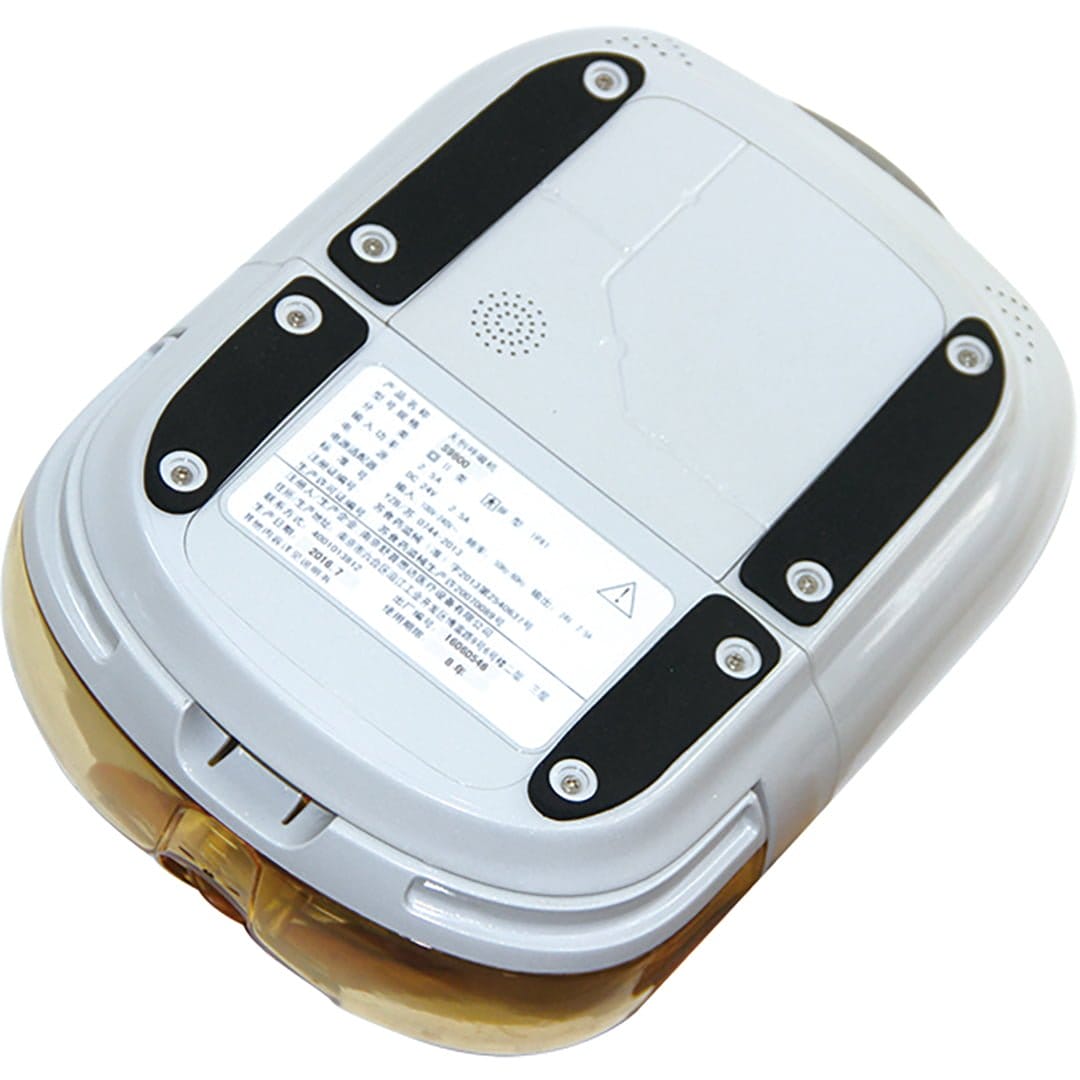

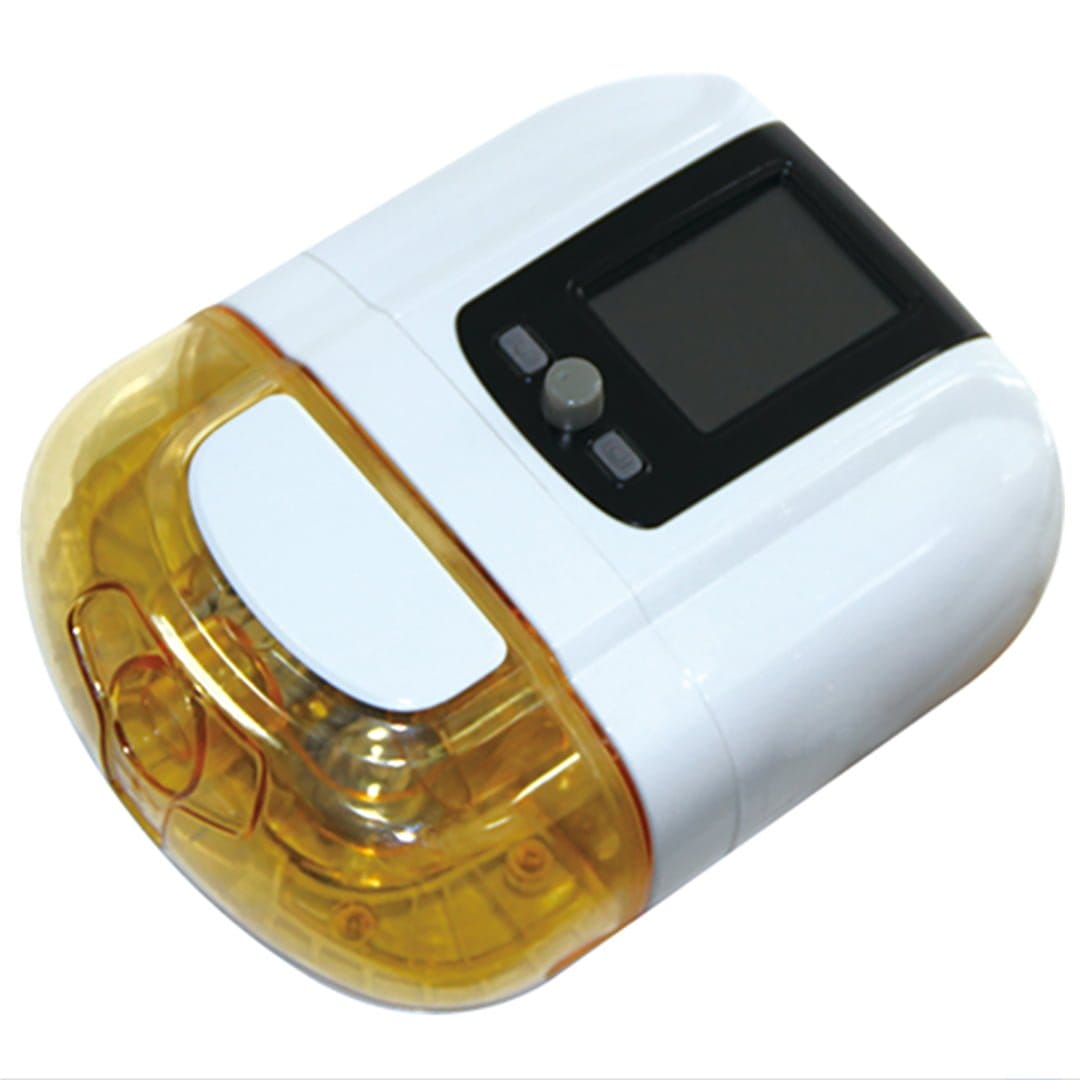

S9700 Bipap
The Bipap System makes a good performance in sleep center, home and other departments.
Application
The Bipap System makes a good performance in sleep center, home and other departments.
From high to low acuity, simple to complex cases, adult to geriatric patients, Superstar Medical Bipap System offers you the choices you need in ventilation, monitoring and technique.

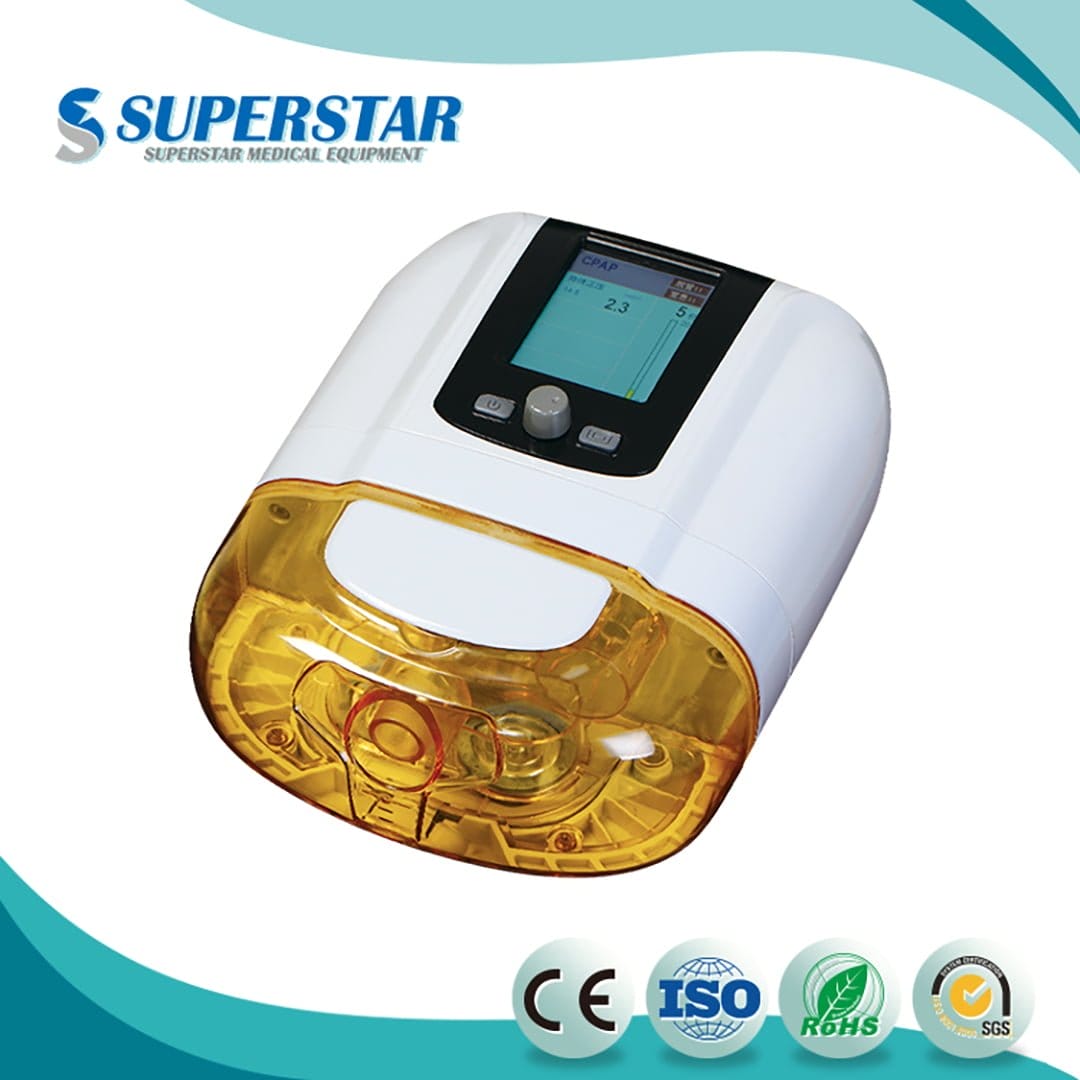

3.5 inch LCD screen displays the ventilation parameters and alarm information.
Multiple working modes:CPAP, S adapt to wide range patient.

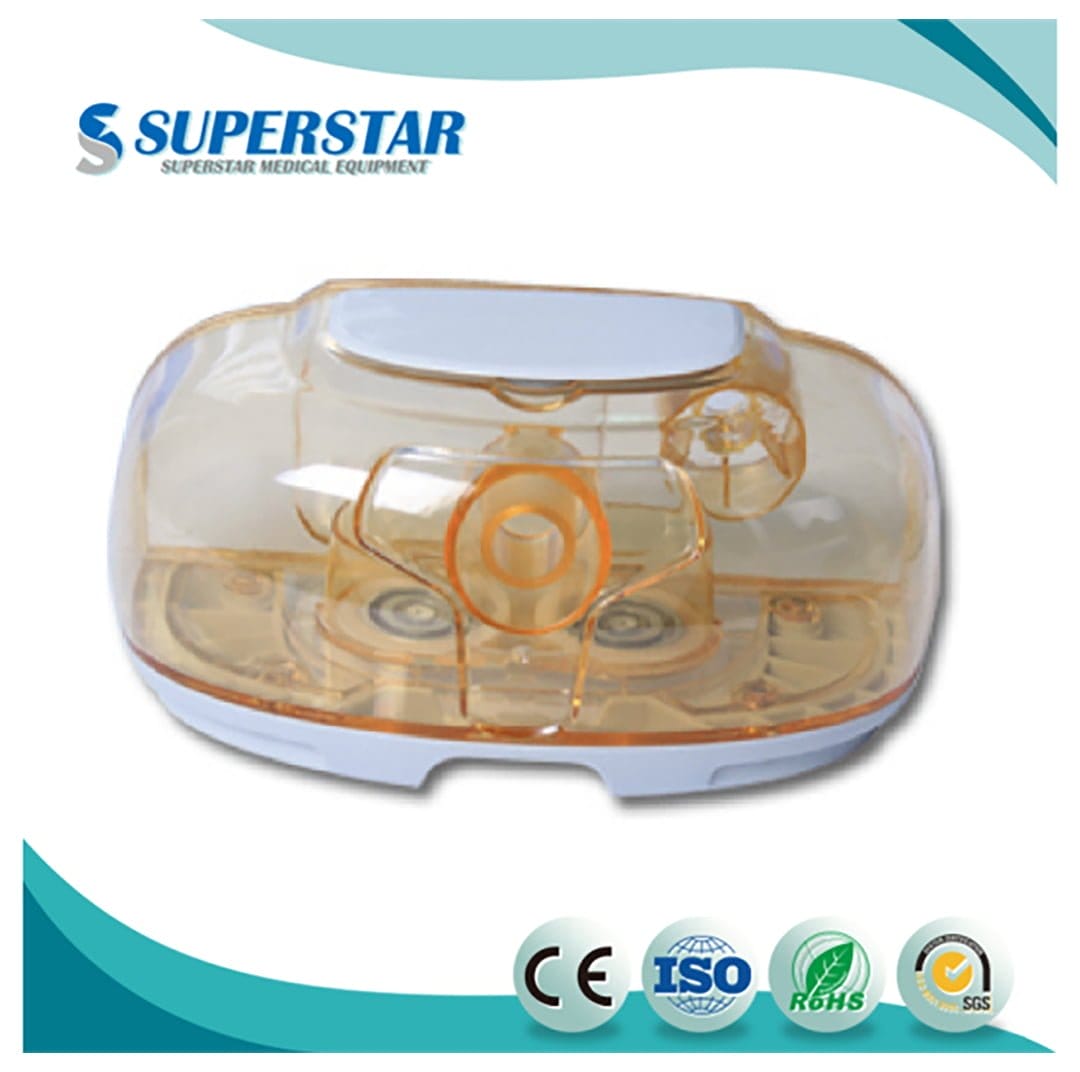

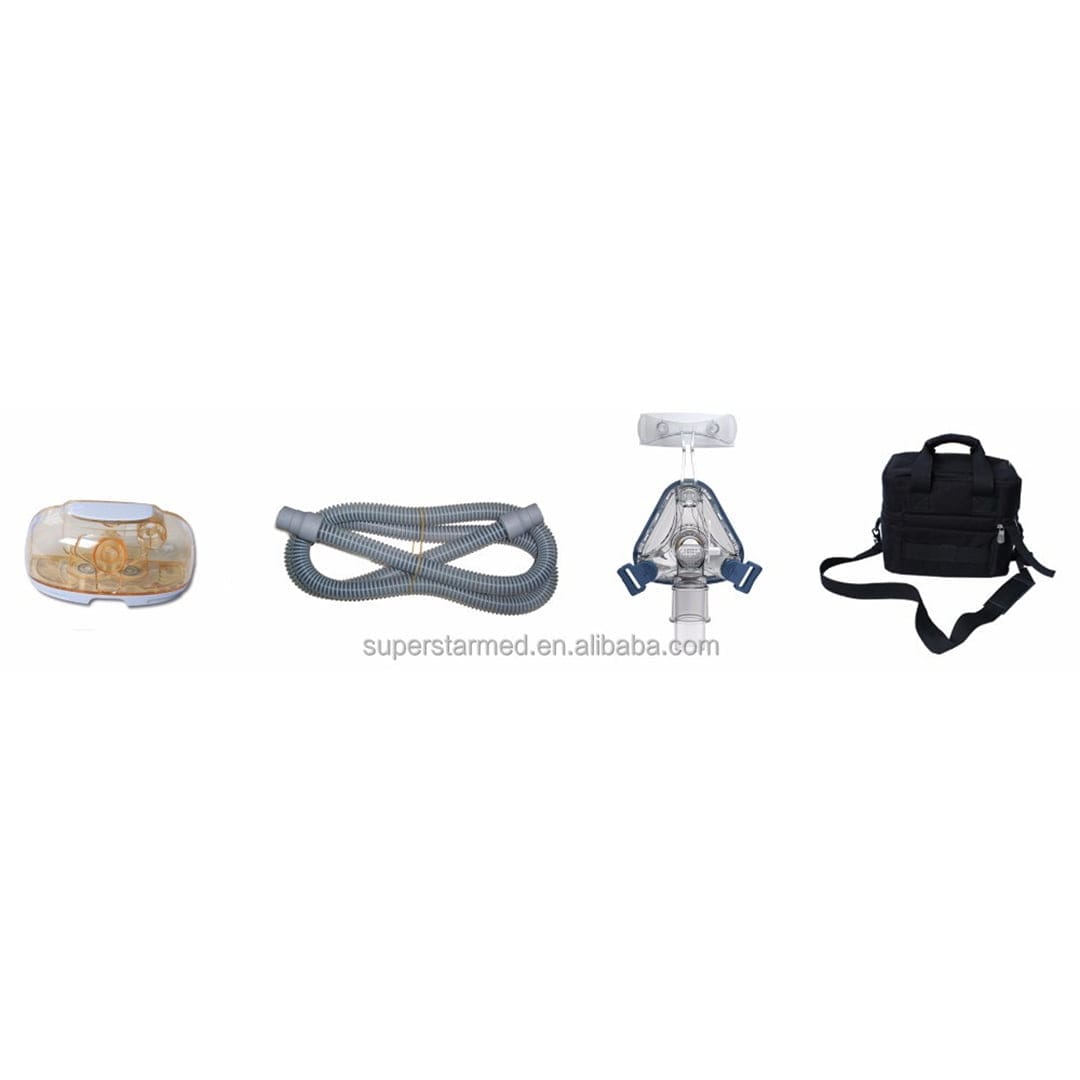

Integration breathing circuit design ensures easy operating and keeps tidy.
Shuting down is not required while refilling water.
Over 10000 units are installed in the world every year.
Simplicity: Portable and friendly use.
Health Tip
The Apnea–Hypopnea Index or Apnoea–Hypopnoea Index (AHI) is an index used to indicate the severity of sleep apnea.
It is represented by the number of apnea and hypopnea events per hour of sleep.
The apneas (pauses in breathing) must last for at least 10 seconds and be associated with a decrease in blood oxygenation.
Combining AHI and oxygen desaturation gives an overall sleep apnea severity score that evaluates both the number of sleep disruptions and the degree of oxygen desaturation (low oxygen level in the blood).
- The AHI is calculated by dividing the number of apnea events by the number of hours of sleep.
- Normal: AHI<5
- Mild sleep apnea: 5≤AHI<15
- Moderate sleep apnea: 15≤AHI<30
- Severe sleep apnea: AHI≥30
- For children, because of their different physiology, an AHI in excess of 1 is considered abnormal.
Suitable patient
- Simple obesity causes respiratory tract (nose and throat) stenosis snorers.
- Congenital short jaw snorers (small chin) lead to the upper respiratory tract stenosis.
- All snoring (snoring) accompanied by sleep apnea, suffocation, stopped breathing, low ventilation, oxygen, and low blood oxygen content.
- All patients who get medical monitoring and diagnosis that suffering from slight to severe obstructive sleep apnea syndrome.
Chronic rhinitis, pharyngitis, turbinate hypertrophy, septum bends, tongue root hypertrophy, uvula hypertrophy, tonsil hypertrophy, pharynx hypertrophy cause upper respiratory tract stenosis snorers.
| TECHNICAL SPECIFICATION | Value | TECHNICAL SPECIFICATION | Value |
|---|---|---|---|
| Ventilation mode | CPAP, S | Oscillogram | Airway pressure histogram |
| CPAP | Adjusting range: 4cmH2O-20cmH2O | ||
| Alarm and protection | |||
| Ramp time | Increment: 0.5cmH2O | High airway pressure | 10cmH2O-20cmH2O |
| Adjusting range: 0-60min | Suffocation warning | 8s-12s no spontaneous ventilation | |
| Flex | Increment: 1min | Pipe detached | Pipe detached 16s |
| Adjusting range: OFF, 1-3 | |||
| Humidifier | Increment: 1 | Using condition | |
| Adjusting range: 0-5 | Storage conditions | -20℃-+60℃ | |
| Ppeak | Increment: 1 | Relative humidity | 15%-95% |
| 0-30cmH2O | Atmosphere pressure | 500hPa-1060hPa | |
| Working condition | Packing size | ||
| Environmental temperature | 5℃-35℃ | Carton packing size | L 285*W 350*H 290mm |
| Relative humidity | 15%-95% | G.W. | 4.5KG |
| Atmosphere pressure | 830hPa-1060hPa | N.W. | 3.5KG |
To better ensure the safety of goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Wooden case packing size:
Main components: L 560 * W 560 * H 605 mm
G.W. : 40 KG, N.W. : 20 KG
Air compressor: L 670* W 700 * H 1160 mm
G.W. : 100 KG, N.W. : 64 KG
