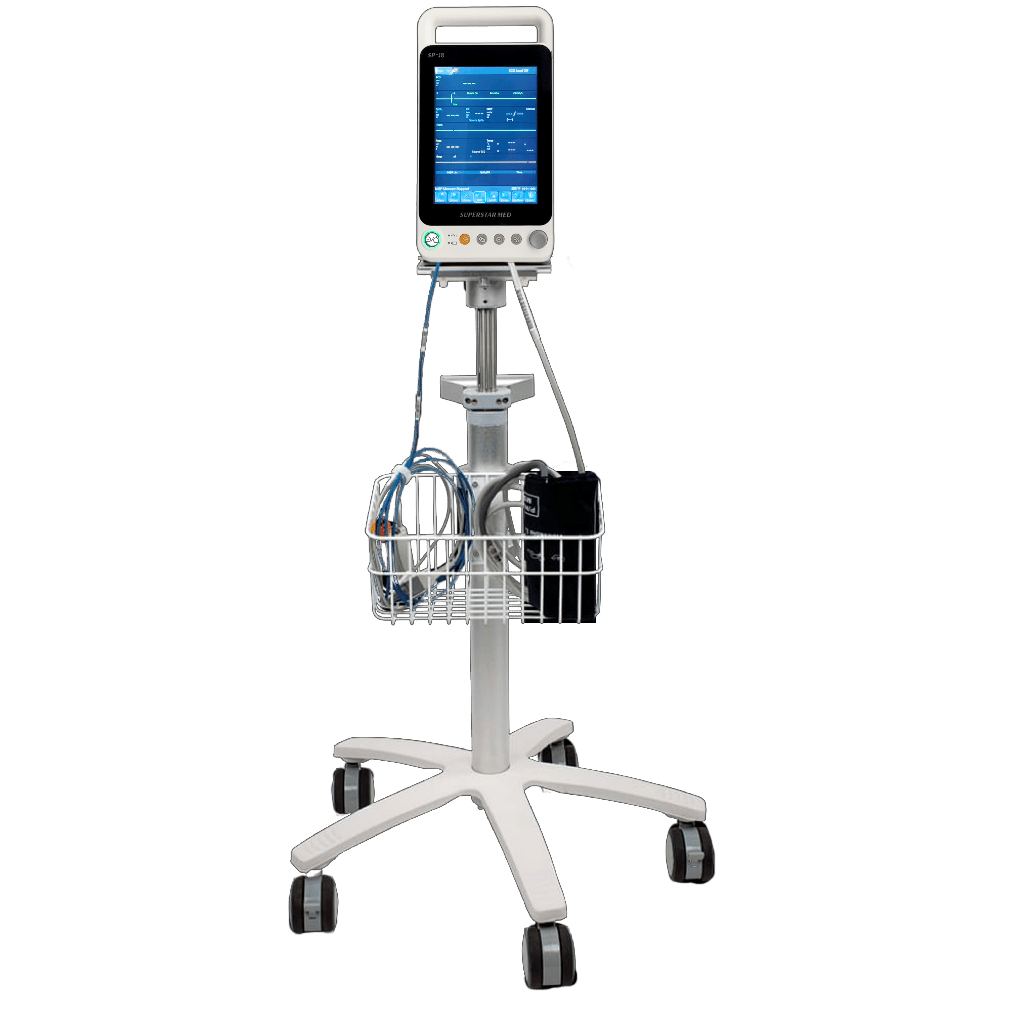

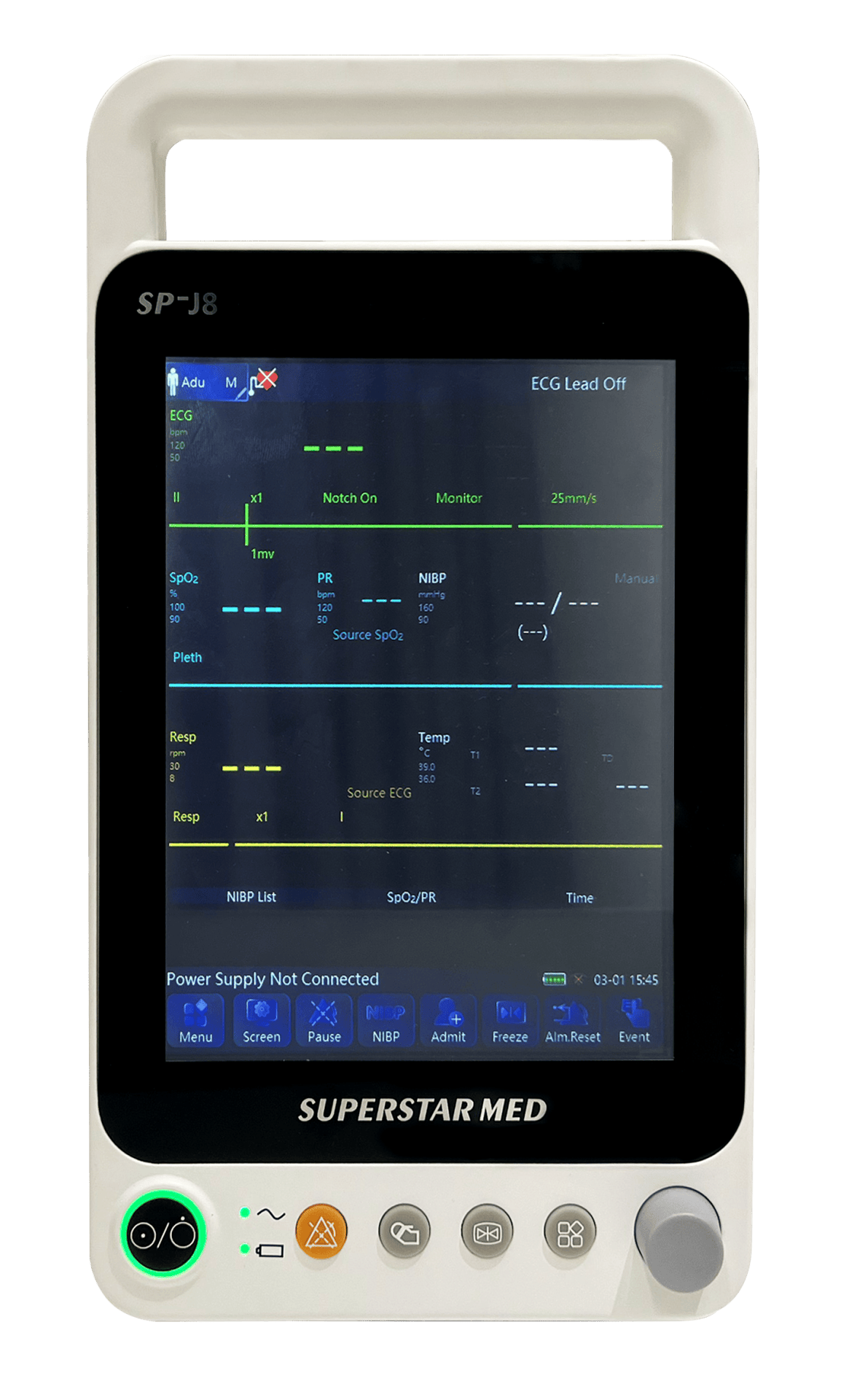

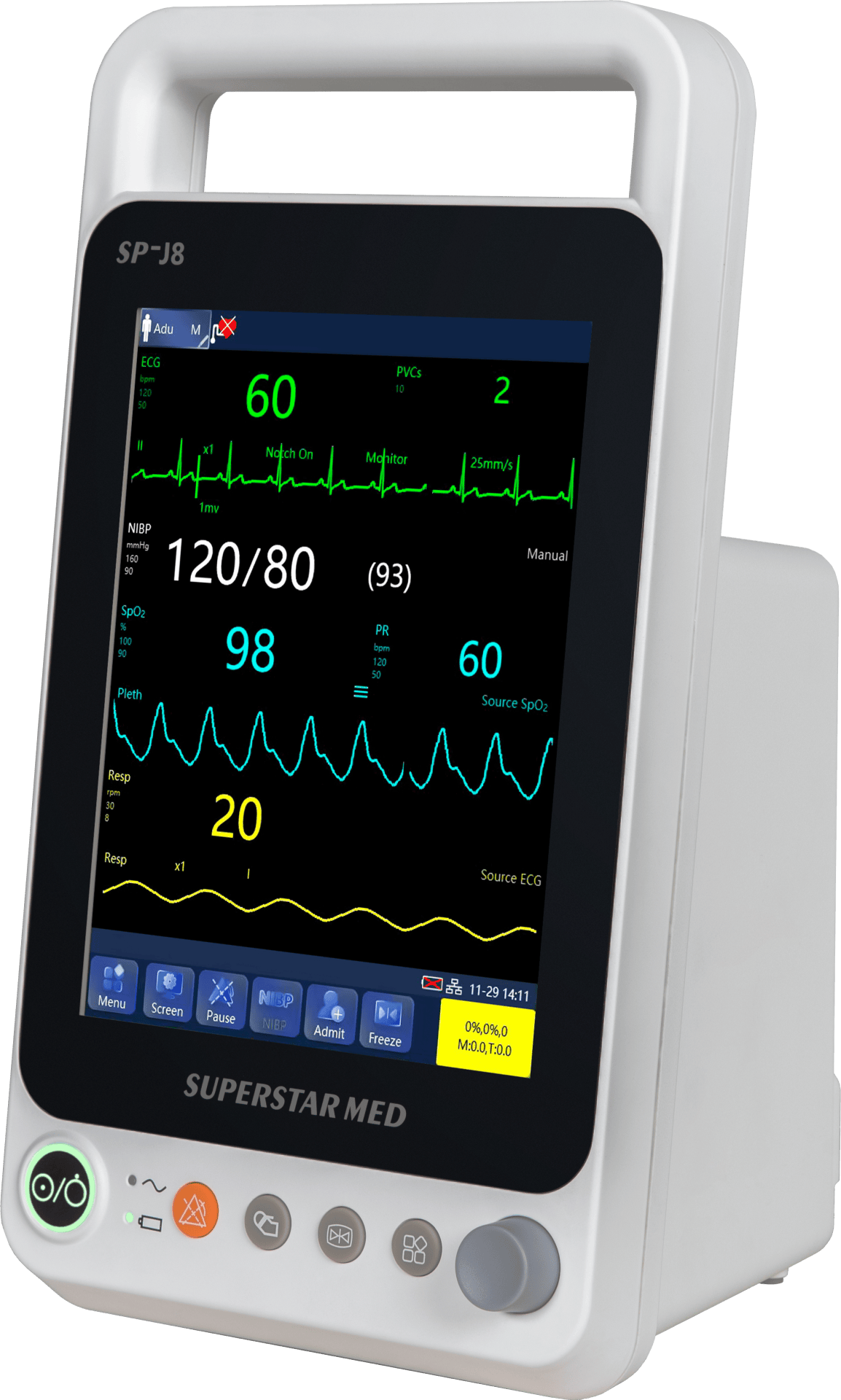

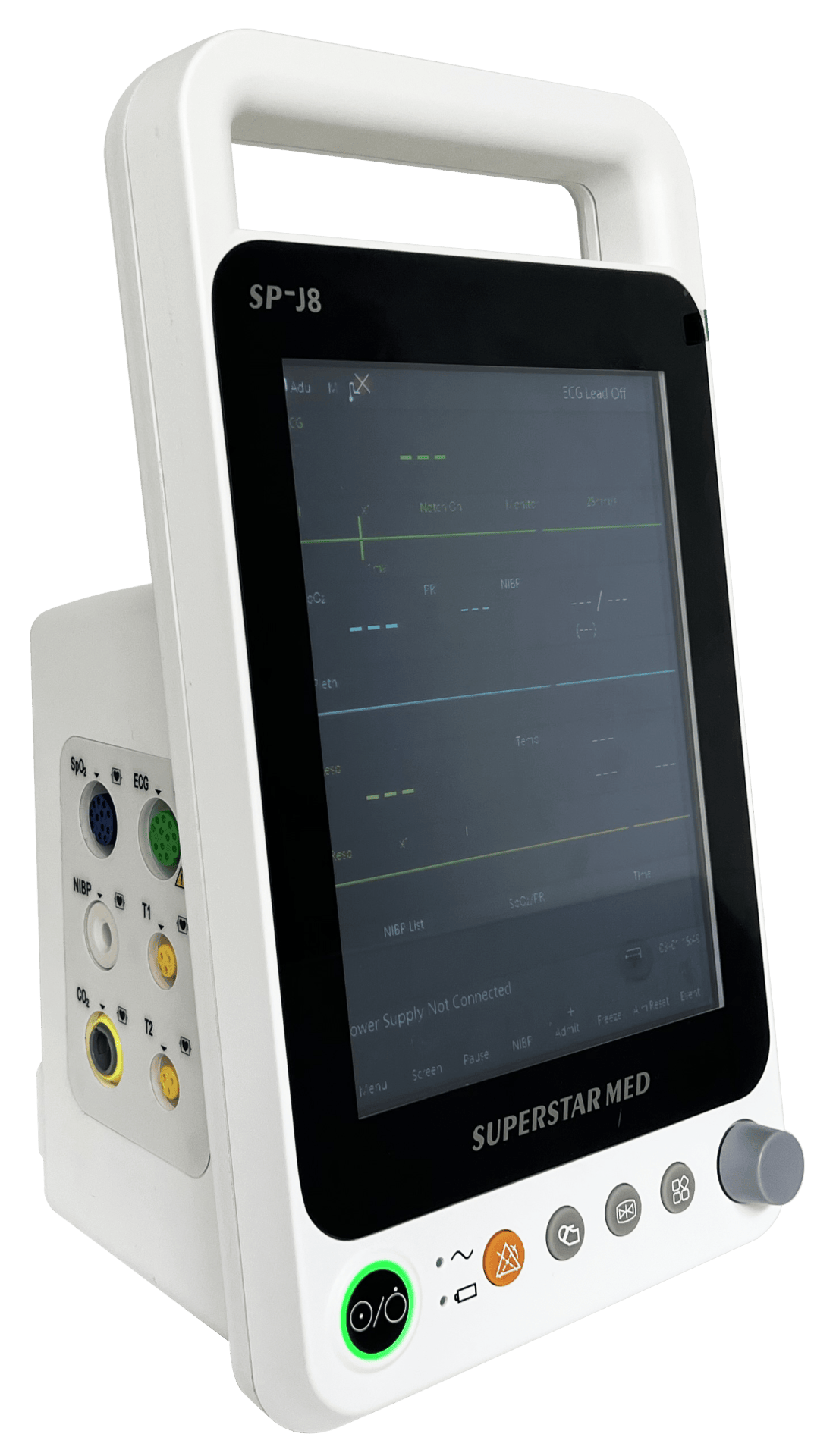

SP-J8 / SP-J8H Multi-Parameter Patient Monitor

The SP-J8/SP-J8H Multi-Parameter Patient Monitor is designed for continuous and reliable patient monitoring in clinical environments.
Equipped with an 8.1-inch TFT LCD touchscreen, it delivers clear visualization and intuitive operation.
Suitable for adult, pediatric, and neonatal patients, the monitor is ideal for use in Operating Rooms, ICUs, CCUs, Emergency Departments, and Recovery Rooms.

Comprehensive Monitoring Parameters

• ECG (3/5/7-lead options)
• Respiration (RESP)
• SpO2 (Oxygen Saturation)
• Pulse Rate (PR)
• Non-Invasive Blood Pressure (NIBP)
• Temperature (TEMP)
• Optional ETCO2 monitoring

Key Features

• Advanced NXP Cortex-A9 processor for stable and fast performance
• Excellent anti-defibrillation and anti-electrosurgical interference capability

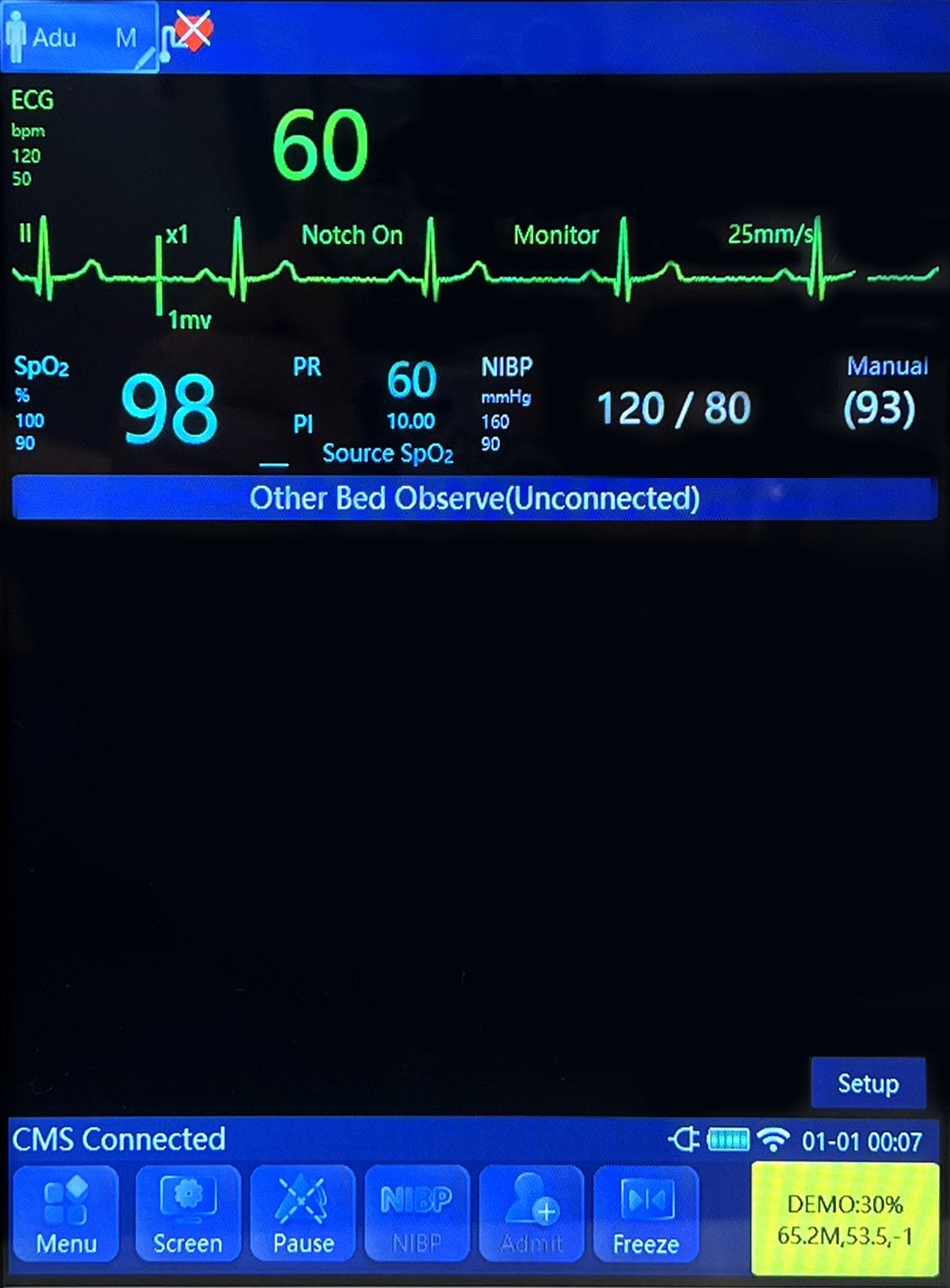

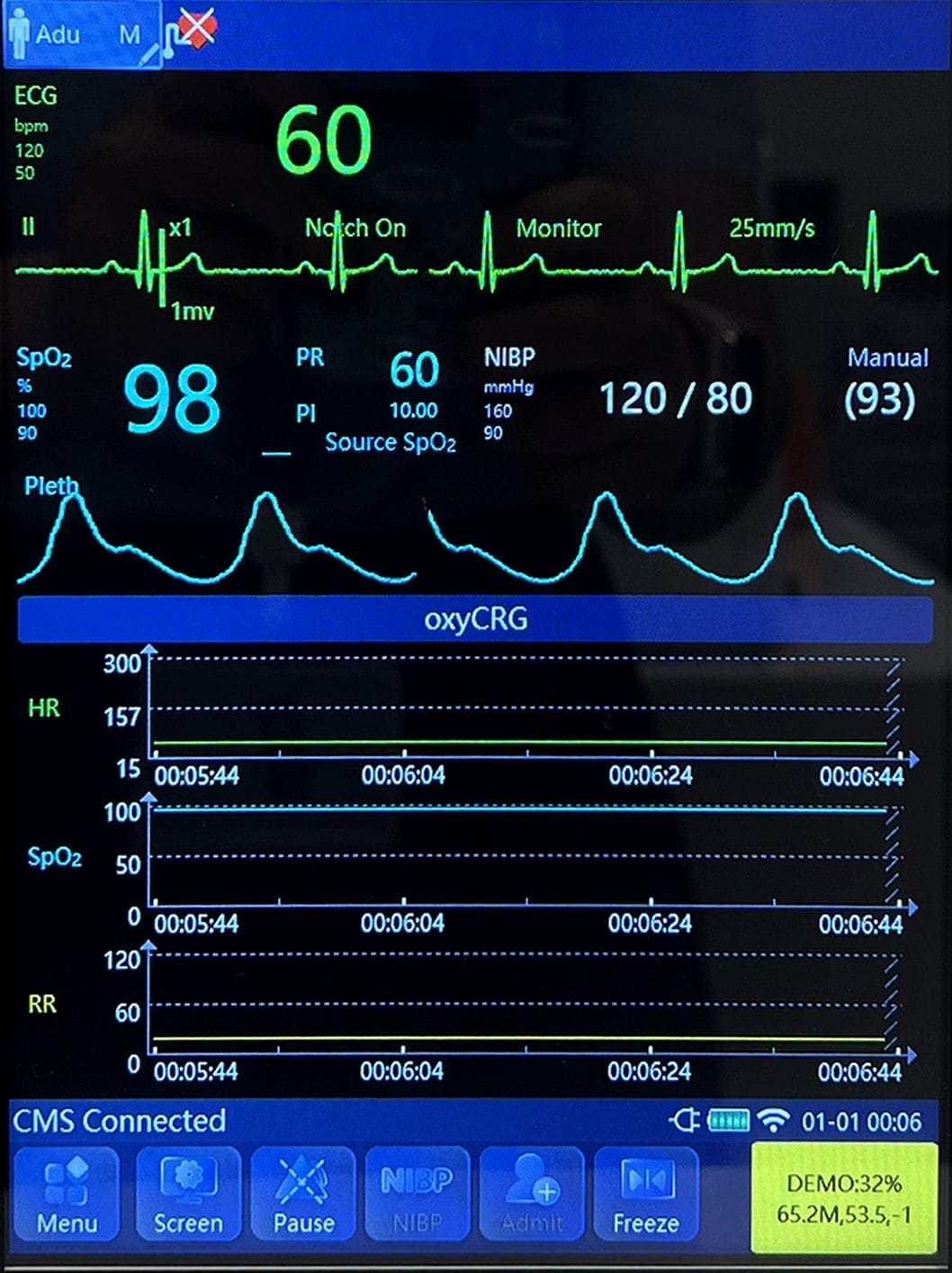

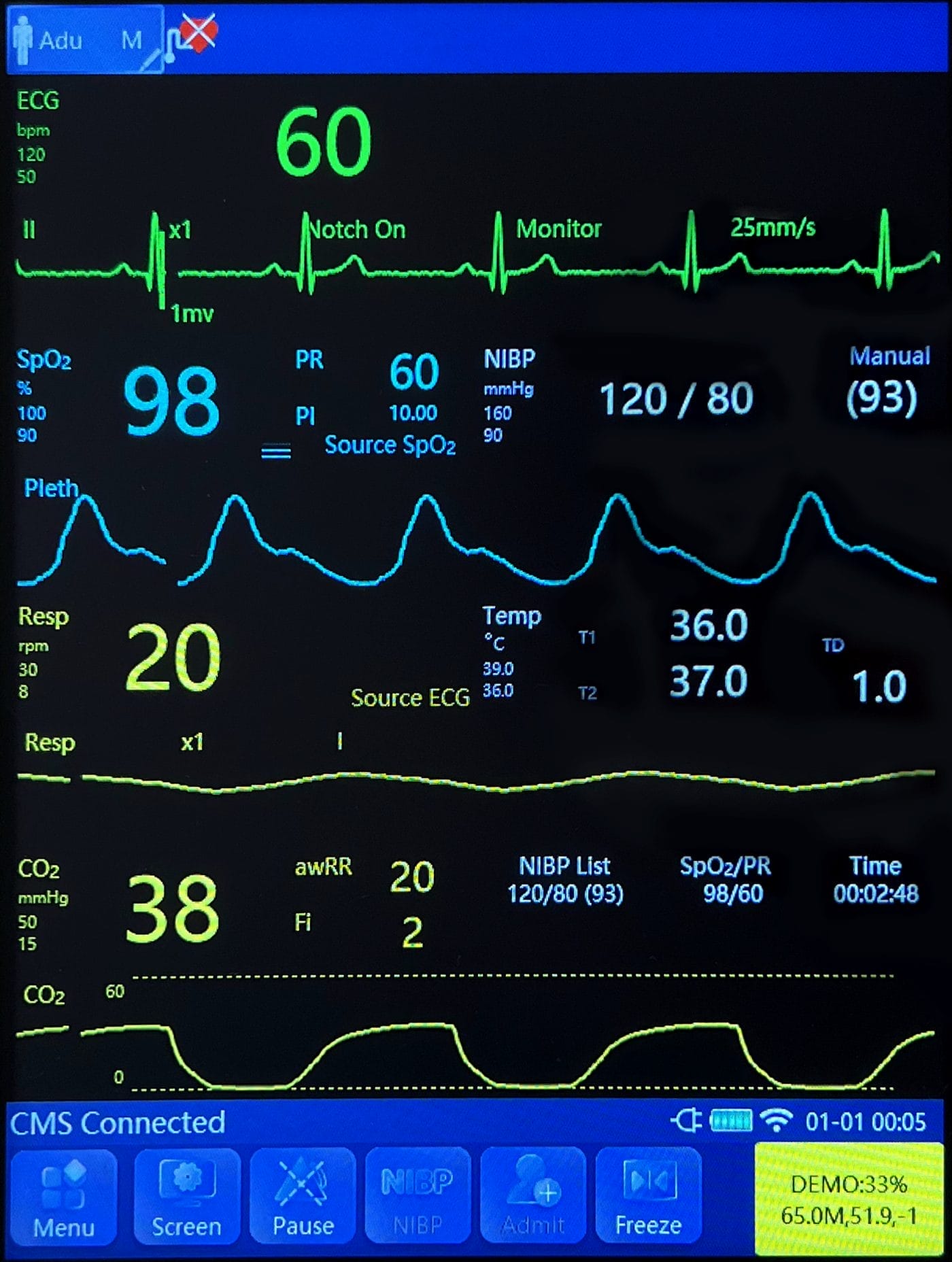

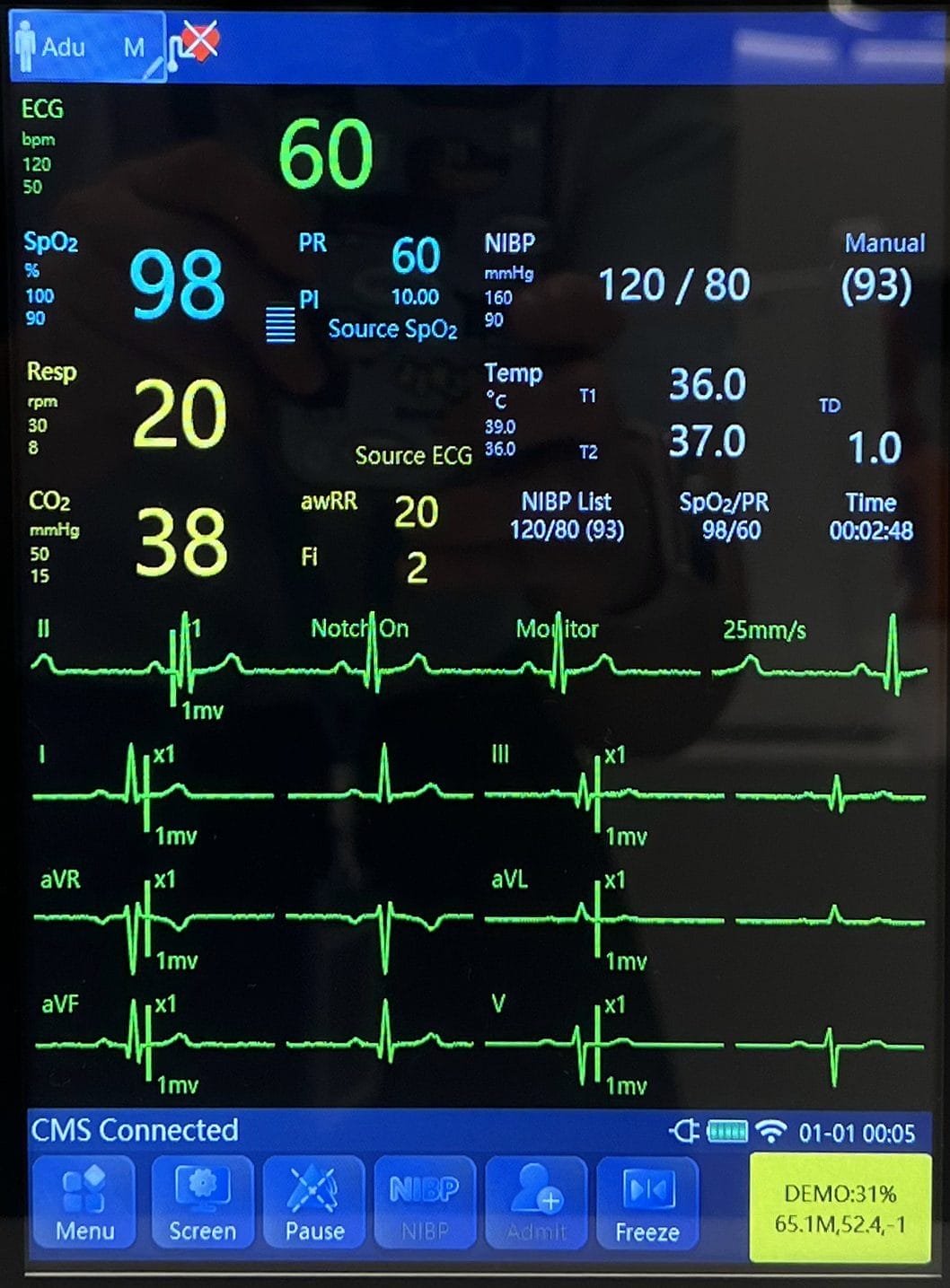

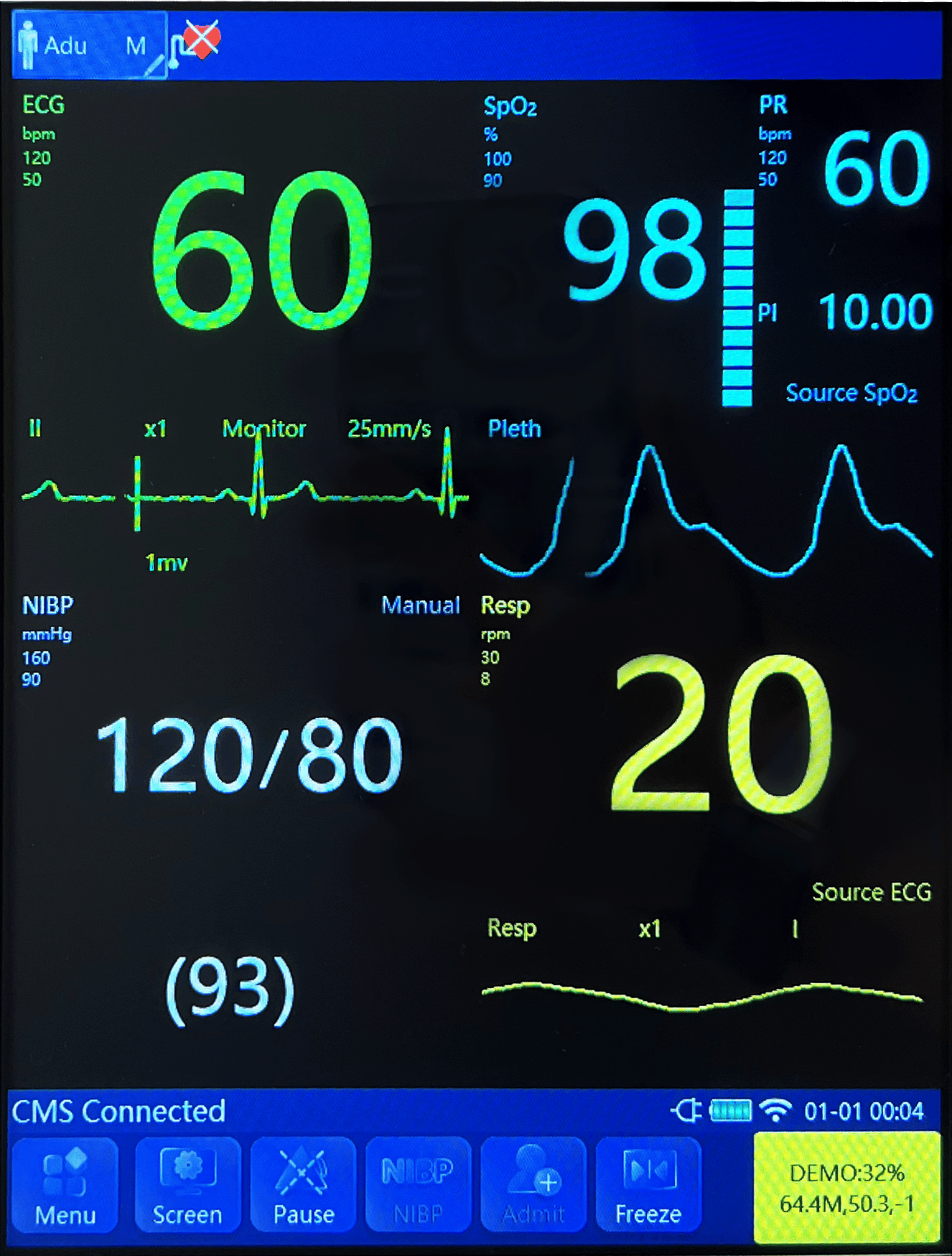

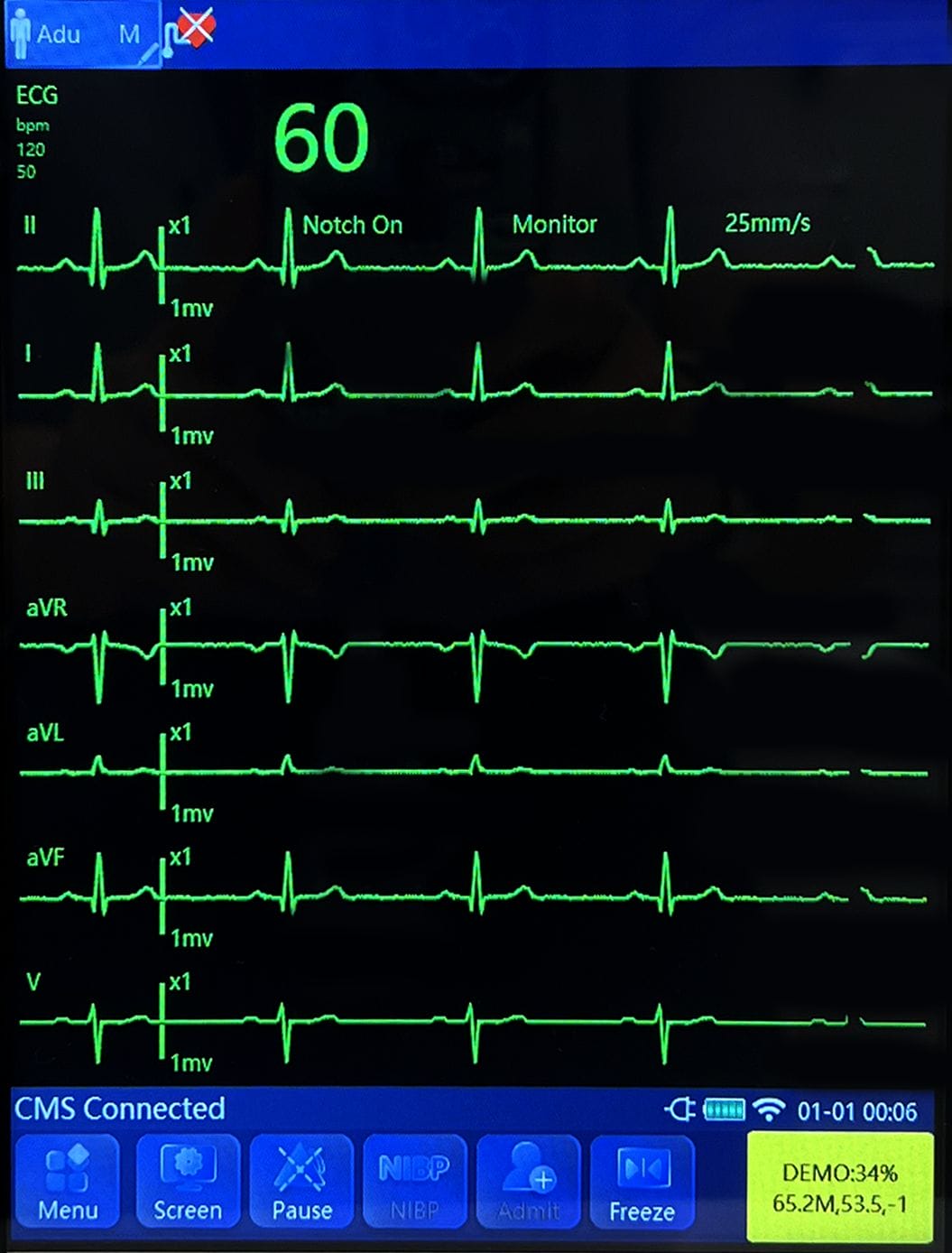

• Multiple display modes: standard view, full/half 7-lead ECG, OxyCRG, trend graphs, and large-font mode
• High-accuracy SpO2 measurement with strong anti-motion performance and low perfusion capability
• Up to 19 alarm types with adjustable alarm volume and dual alarm indicators
• Fast ECG recovery (< 2 seconds) from interference
• NIBP measurement deviation within ±5 mmHg
• Built-in rechargeable battery with over 120 minutes of operation during power failure
• Supports Wi-Fi, network connectivity, HIS integration, USB ports, and data export

Technical Specifications (Summary)

• Heart Rate (HR): 15–300 bpm (Adult), up to 350 bpm (Pediatric)
• Respiration Rate (RR): 0–120 rpm
• SpO2 Range: 0–100%
• Pulse Rate (PR): 25–250 bpm
• Temperature Range: 0–50°C
• NIBP Range (Adult): SYS 40–270 mmHg
• Optional ETCO2: 0–19.7% concentration

The SP-J8/SP-J8H provides reliable, accurate, and user-friendly monitoring performance,
making it a dependable solution for modern healthcare facilities.
